2005 Buick LeSabre V6-3.8L VIN KFACTORY OEM SERVICE PROCEDURE
Dash Integration Module Replacement
DASH INTEGRATION MODULE REPLACEMENT
REMOVAL PROCEDURE
1. Before replacement, record the personalization settings to transfer to the new module (if they are available). Refer to Body Control Module (BCM) Programming/RPO Configuration (IPM) Body Control Module (BCM) Programming/RPO Configuration (DIM) Body Control Module (BCM) Programming/RPO Configuration (RIM).
2. Remove the right sound insulator.

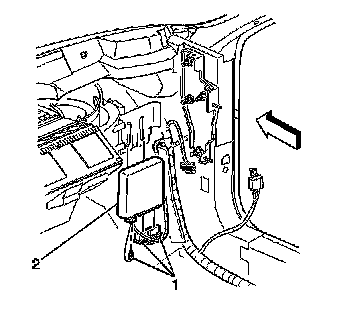

3. Remove the dash integration module (DIM) from the bracket by releasing the tab behind the module and pulling downward.
4. Disconnect the electrical connectors (1).
INSTALLATION PROCEDURE
1. Connect the electrical connectors (1).
2. Install the DIM into the bracket.
3. Install the right sound insulator.
4. Reprogram the DIM. Refer to Body Control Module (BCM) Programming/RPO Configuration (IPM) Body Control Module (BCM) Programming/RPO Configuration (DIM) Body Control Module (BCM) Programming/RPO Configuration (RIM). Programming and Relearning
