Installation Procedure
- Install a new gasket, if necessary.

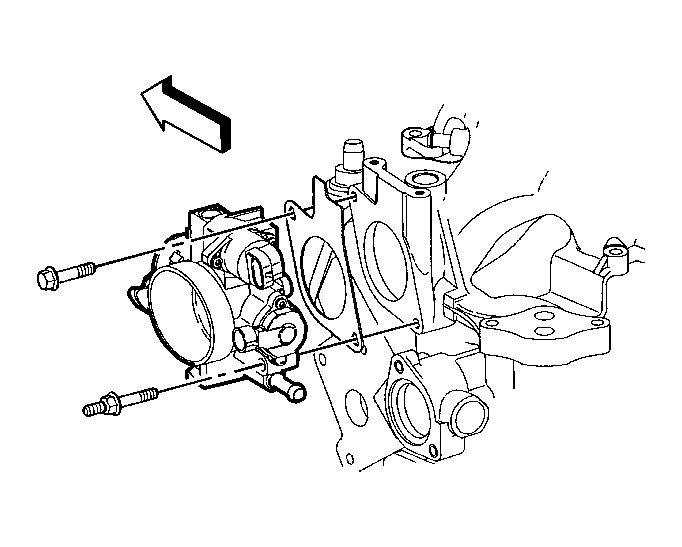

- Install the throttle body assembly.
- Install the throttle body nuts and the bolts.
Tighten: Tighten the nuts and the bolts to 28 N.m (21 lb ft).

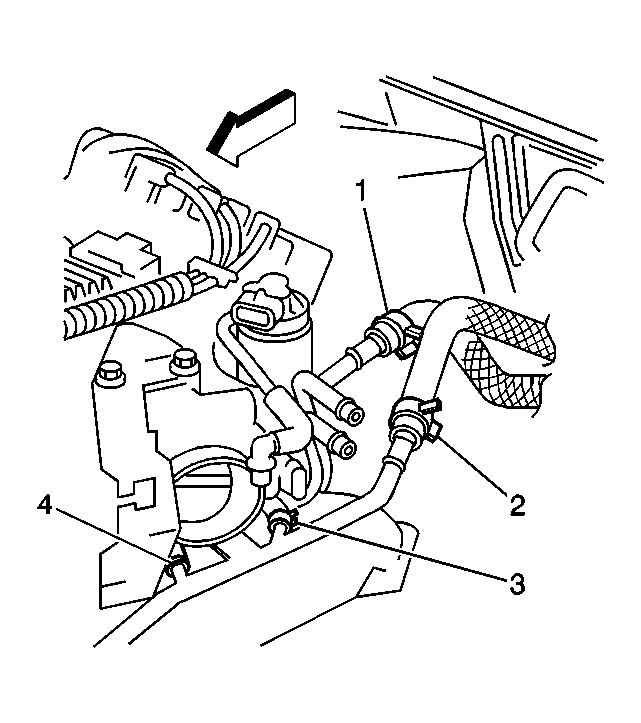

- Install the throttle body inlet (3) and the outlet (4) hoses to the throttle body.

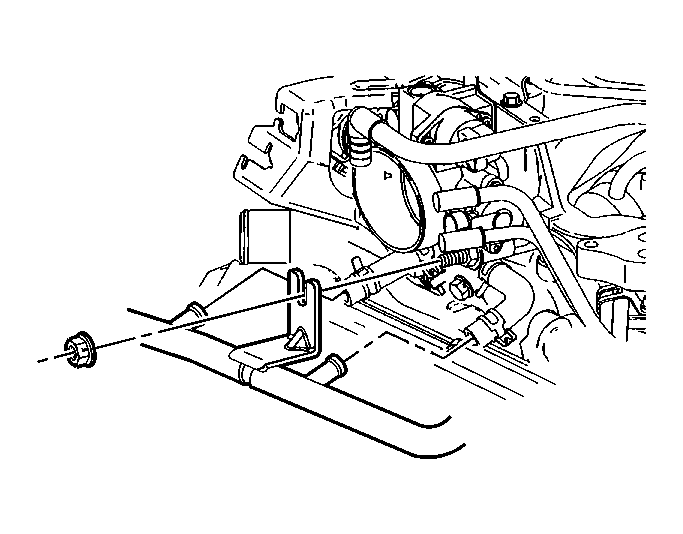

- Install the heater pipe nut to the throttle body.
Tighten: Tighten the nut to 25 N.m (18 lb ft).

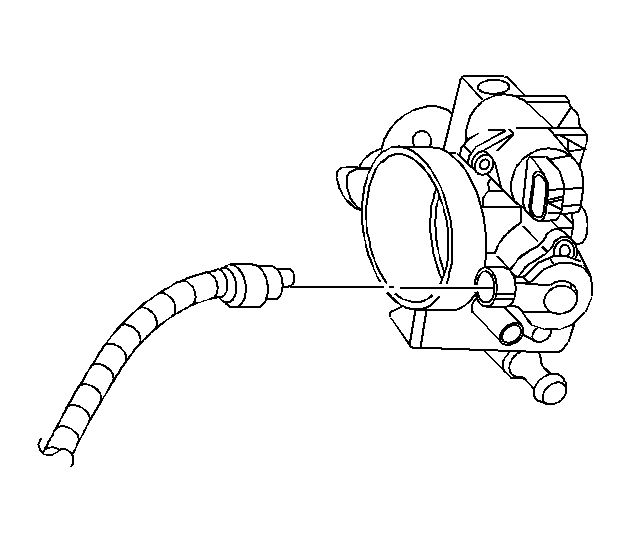

- Connect the IAC valve electrical connector.

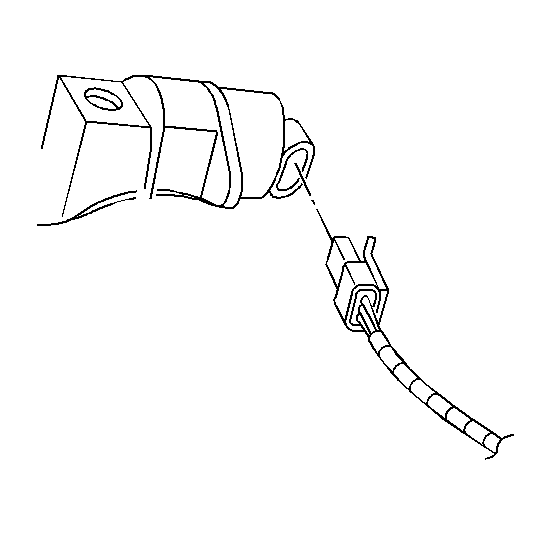

- Connect the TP sensor electrical connector.
- Install the accelerator controls cable bracket. Refer to Accelerator Controls Cable Bracket Replacement .
- Install the air cleaner intake duct. Refer to Air Cleaner Intake Duct Replacement .
- Fill the cooling system. Refer to Draining and Filling Cooling System in Engine Cooling.
