2005 Buick Century LimitedFACTORY OEM SERVICE PROCEDURE
Installation Procedure
- Install the spark plug wires to the engine.

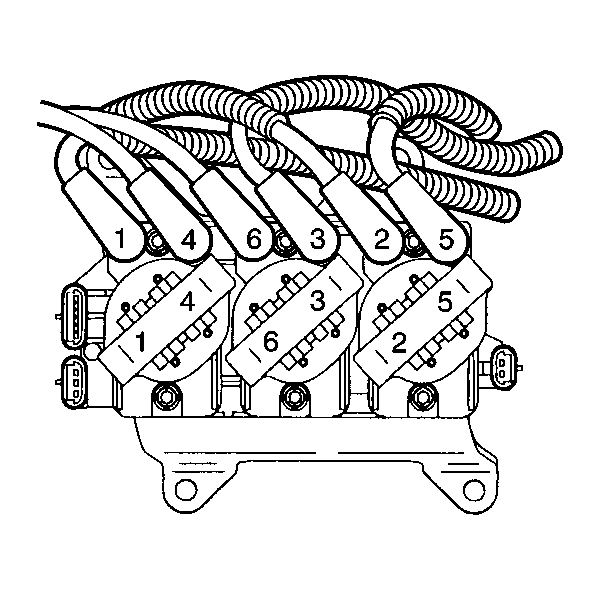

- Install the spark plug wires to the ignition coils.

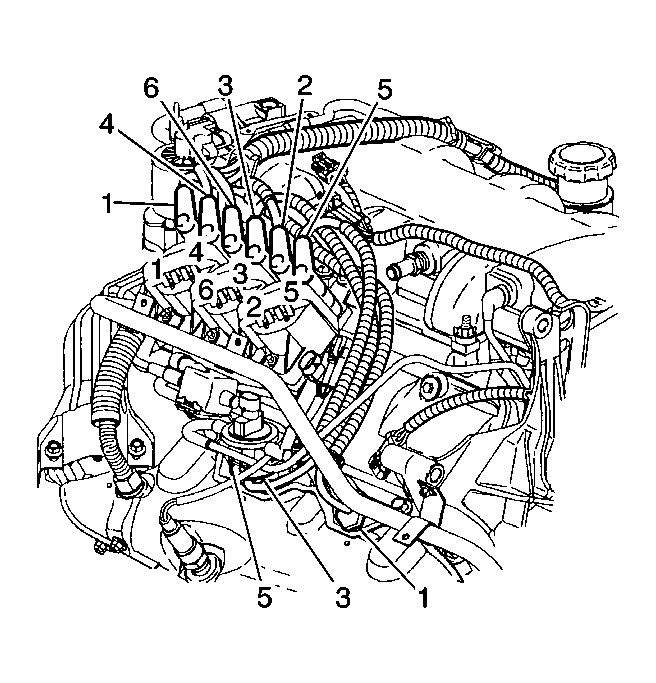

- Install the spark plug wires 1, 3, and 5 to the engine right side spark plugs.
- Install the spark plug wires to the retaining clip.

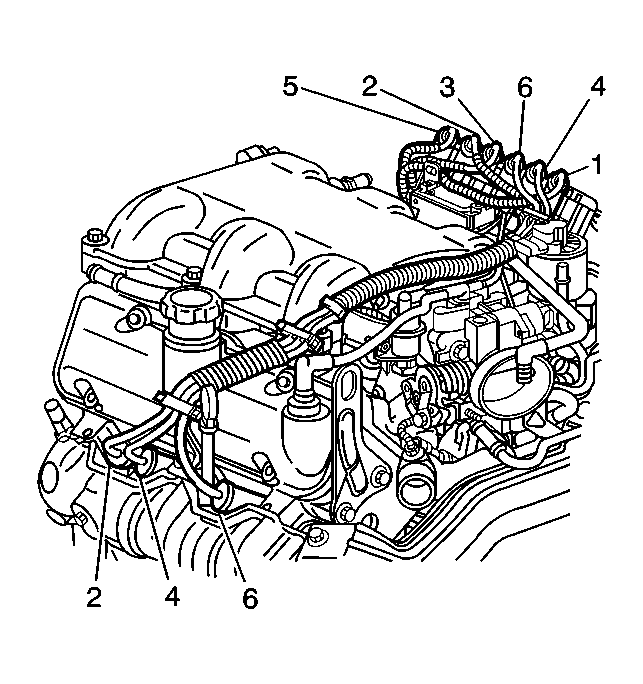

- Install the spark plug wires 2, 4, and 6 to the engine left side spark plugs.
- Install the spark plug wires to the retaining clips.
