2005 Buick Century LimitedFACTORY OEM SERVICE PROCEDURE
Removal Procedure
IMPORTANT:
Always maintain cleanliness when servicing fuel system components.
- Remove the fuel sender assembly. Refer to Fuel Sender Assembly Replacement .
- Remove the retaining clip from the fuel level sensor harness connector.
- Disconnect the fuel level sensor harness connector from under the fuel sender cover.
- Disconnect the fuel pump harness connector.

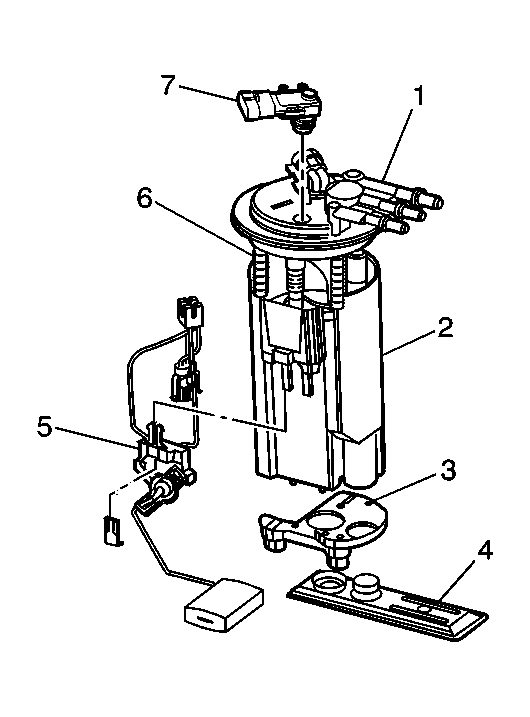

- Remove the fuel level sensor (5) from the fuel sender assembly.
