2005 Buick Century LimitedFACTORY OEM SERVICE PROCEDURE

Removal Procedure

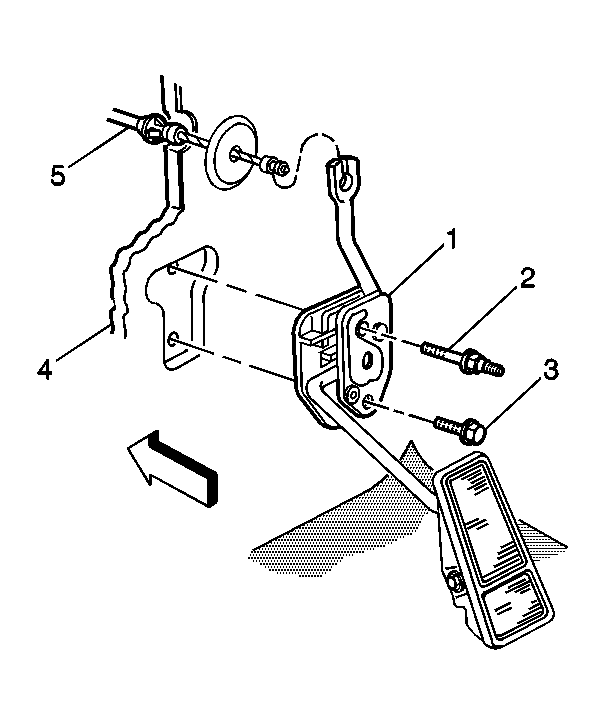

    Fig 1: Accelerator Cable & Components
    GM12287Courtesy of GENERAL MOTORS CORP.
  1. Remove the left instrument panel sound insulator. Refer to Closeout/Insulator Panel Replacement - Left in Instrument Panel, Gages and Console.
  2. Remove the accelerator cable (5) from the accelerator pedal (1).
  3. Squeeze the accelerator cable cover tangs and push the accelerator cable through the cowl (4).
    4. Fig 2: Identifying Cruise Control Cable
    GM319387Courtesy of GENERAL MOTORS CORP.
  4. Remove the cruise control cable from the throttle body lever.
  5. Remove cruise control cable from the bracket.

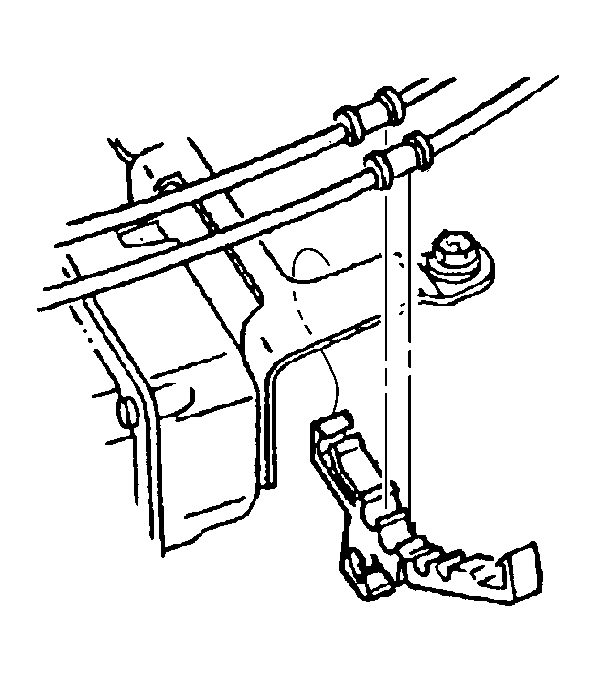

    6. Fig 3: Accelerator Cable To Retaining Clips
    GM12717Courtesy of GENERAL MOTORS CORP.
  6. Remove the accelerator cable from the retaining clip.
    7. Fig 4: Identifying Throttle Cable Bracket With Cables
    GM12735Courtesy of GENERAL MOTORS CORP.
  7. Remove the accelerator cable from the throttle body lever.
  8. Remove the accelerator cable from the accelerator cable bracket.

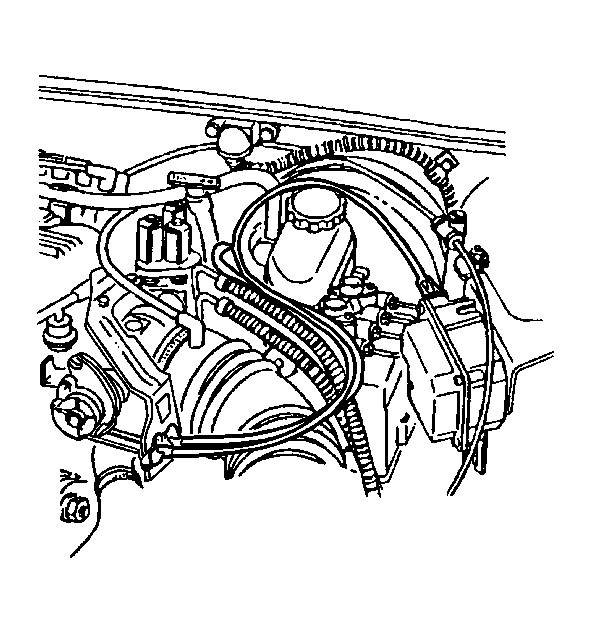

    9. Fig 5: Identifying Accelerator Cables
    GM12734Courtesy of GENERAL MOTORS CORP.
  9. Remove the accelerator cable from vehicle noting cable routing.
