2005 Buick Century LimitedFACTORY OEM SERVICE PROCEDURE

Removal Procedure

  1. Remove the air cleaner intake duct. Refer to Air Cleaner Intake Duct Replacement .

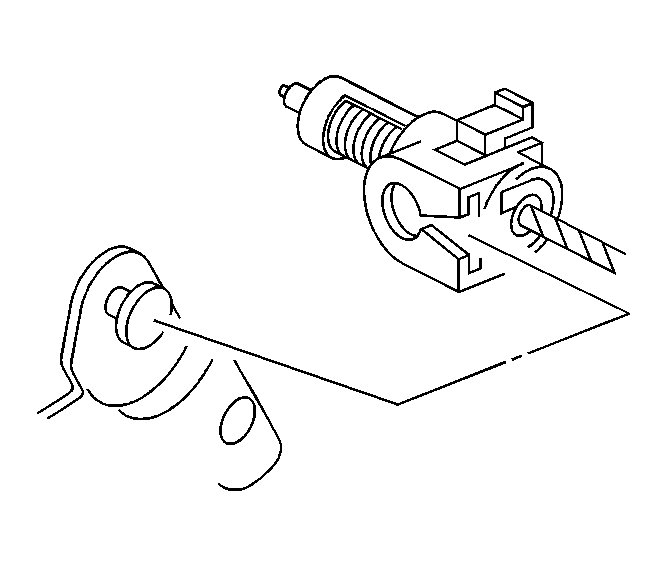

    2. Fig 1: Identifying Cruise Control Cable
    GM319387Courtesy of GENERAL MOTORS CORP.
  2. Remove the cruise control cable from the throttle body lever.
  3. Remove the cruise control cable from the accelerator bracket.

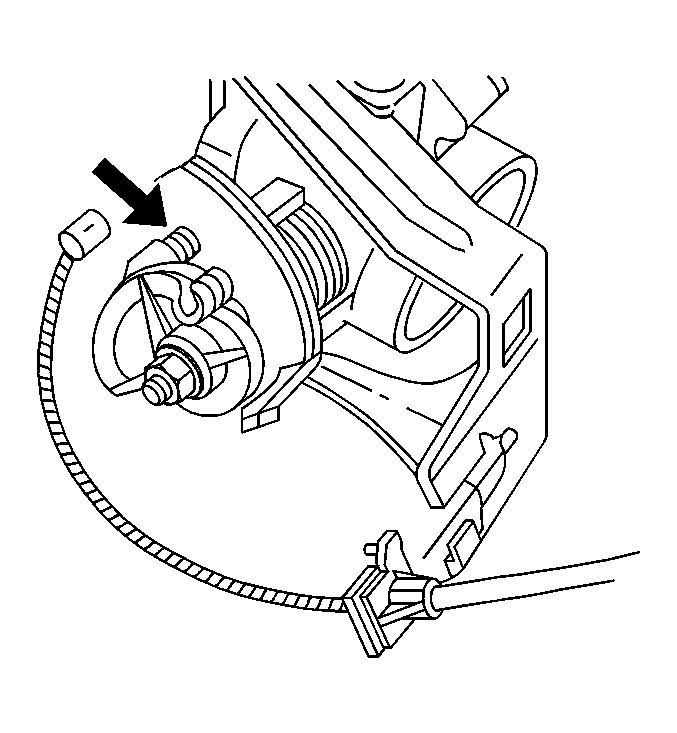

    4. Fig 2: Identifying Throttle Cable Bracket With Cables
    GM12735Courtesy of GENERAL MOTORS CORP.
  4. Remove the accelerator cable from cruise control throttle body lever.
  5. Remove the accelerator cable from accelerator cable bracket.

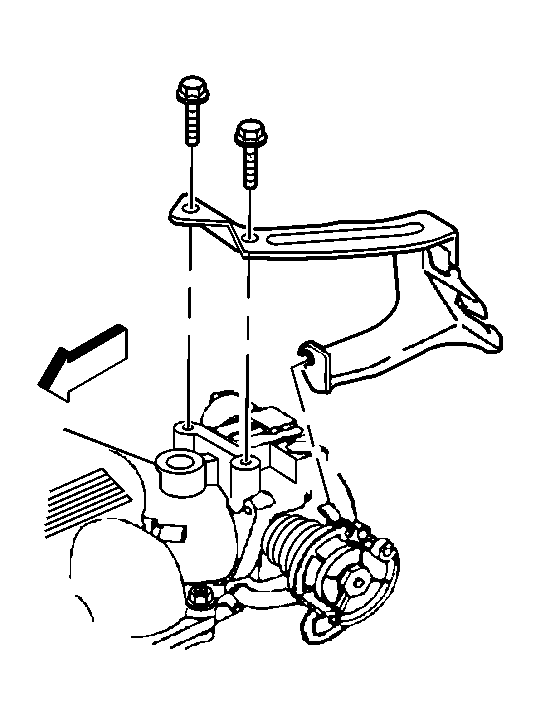

    6. Fig 3: View Of Accelerator Cable Bracket
    GM12689Courtesy of GENERAL MOTORS CORP.
  6. Remove the nut and the bolts from the accelerator cable bracket.
  7. Remove the accelerator cable bracket.
