2005 Buick Century CustomFACTORY OEM SERVICE PROCEDURE

Removal Procedure

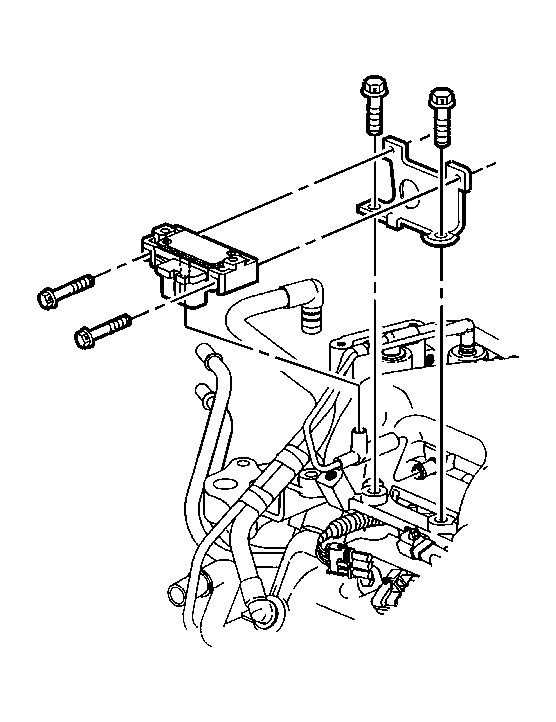

    Fig 1: View Of MAP Sensor
    GM54360Courtesy of GENERAL MOTORS CORP.
  1. Remove the manifold absolute pressure (MAP) sensor screws.
  2. Disconnect the MAP sensor electrical connector.
  3. Remove the inlet vacuum hose from the map sensor.
  4. Remove the MAP sensor from the bracket.
