Installation Procedure

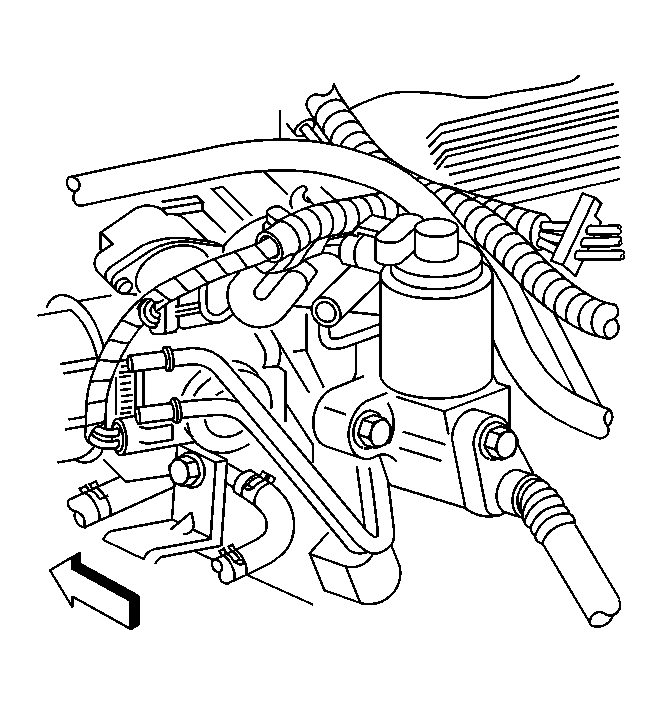

- Install the new EGR valve gasket.
- Install the EGR valve.
- Install the EGR valve bolts.
Tighten: Tighten the valve bolts to 30 N.m (22 lb ft).
- Install the EGR pipe to the EGR valve.
- Install the bolt.
Tighten: Tighten the bolt to 25 N.m (18 lb ft).
- Connect the EGR valve electrical connector.
