2005 Buick Century BaseFACTORY OEM SERVICE PROCEDURE
Cellular Communication Component Views
WARNING: This page is about a different car, the 2004 Buick Regal and 2004 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

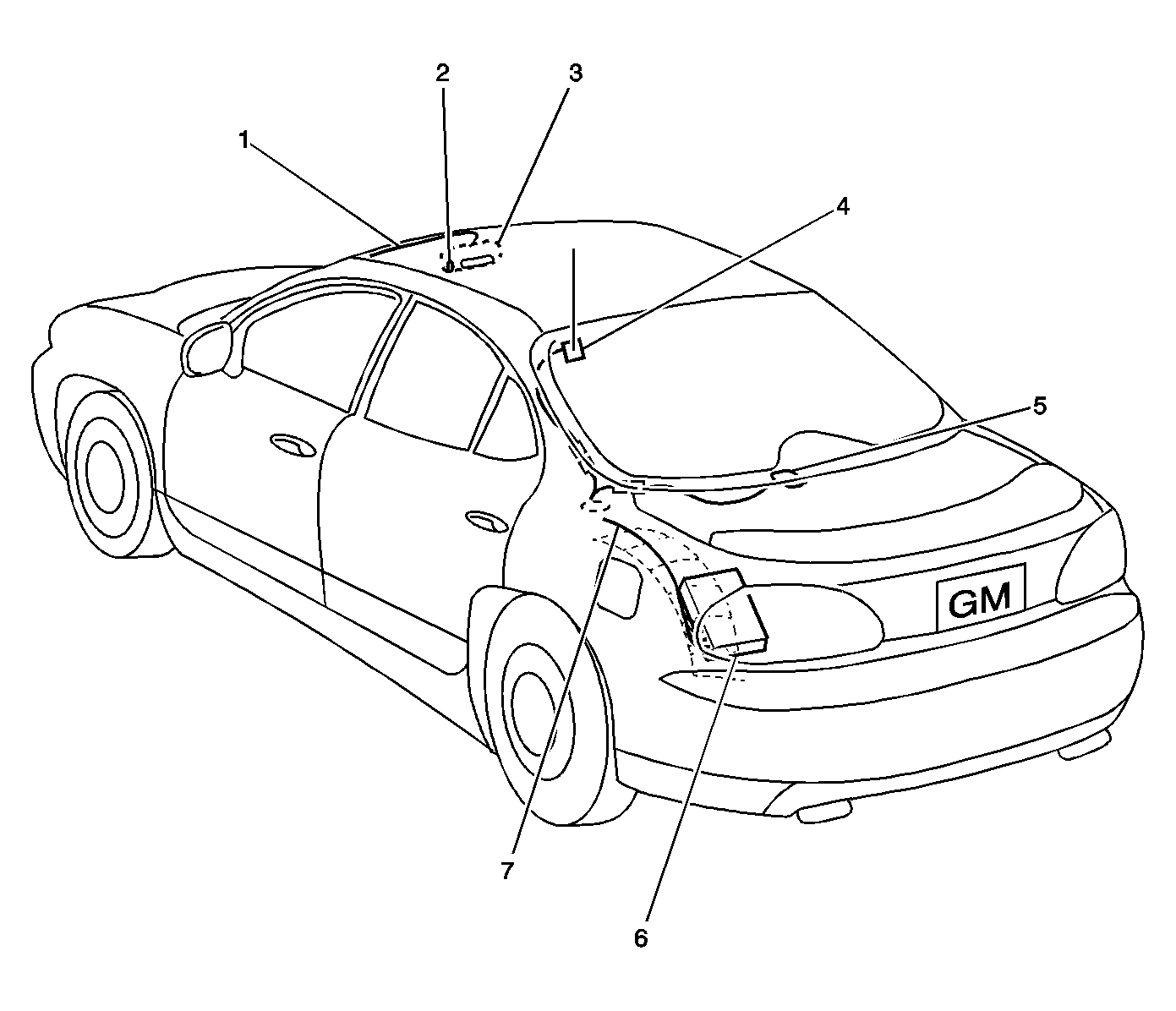

| Callout | Component Name |
|---|---|
| 1 | Headliner Wiring Harness |
| 2 | Cellular Telephone Microphone |
| 3 | OnStar Button Assembly |
| 4 | Cellular Telephone Antenna |
| 5 | Navigation Antenna |
| 6 | Vehicle Communications Interface Module (VCIM) |
| 7 | Body Wiring Harness |

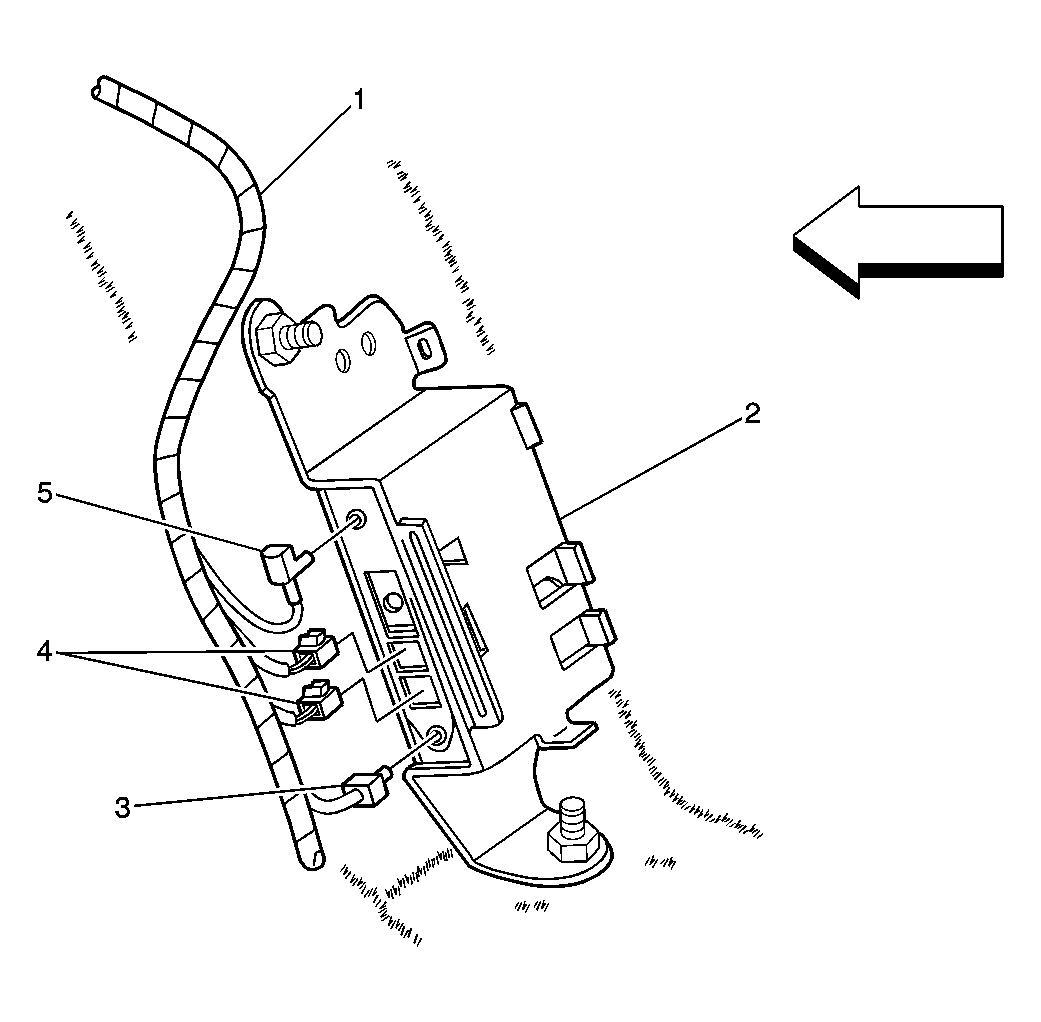

| Callout | Component Name |
|---|---|
| 1 | Body Wiring Harness |
| 2 | Vehicle Communications Interface Module (VCIM) |
| 3 | Cellular Telephone Antenna Connection |
| 4 | Vehicle Communications Interface Module (VCIM) C1, C2 |
| 5 | Navigation Antenna Connection |

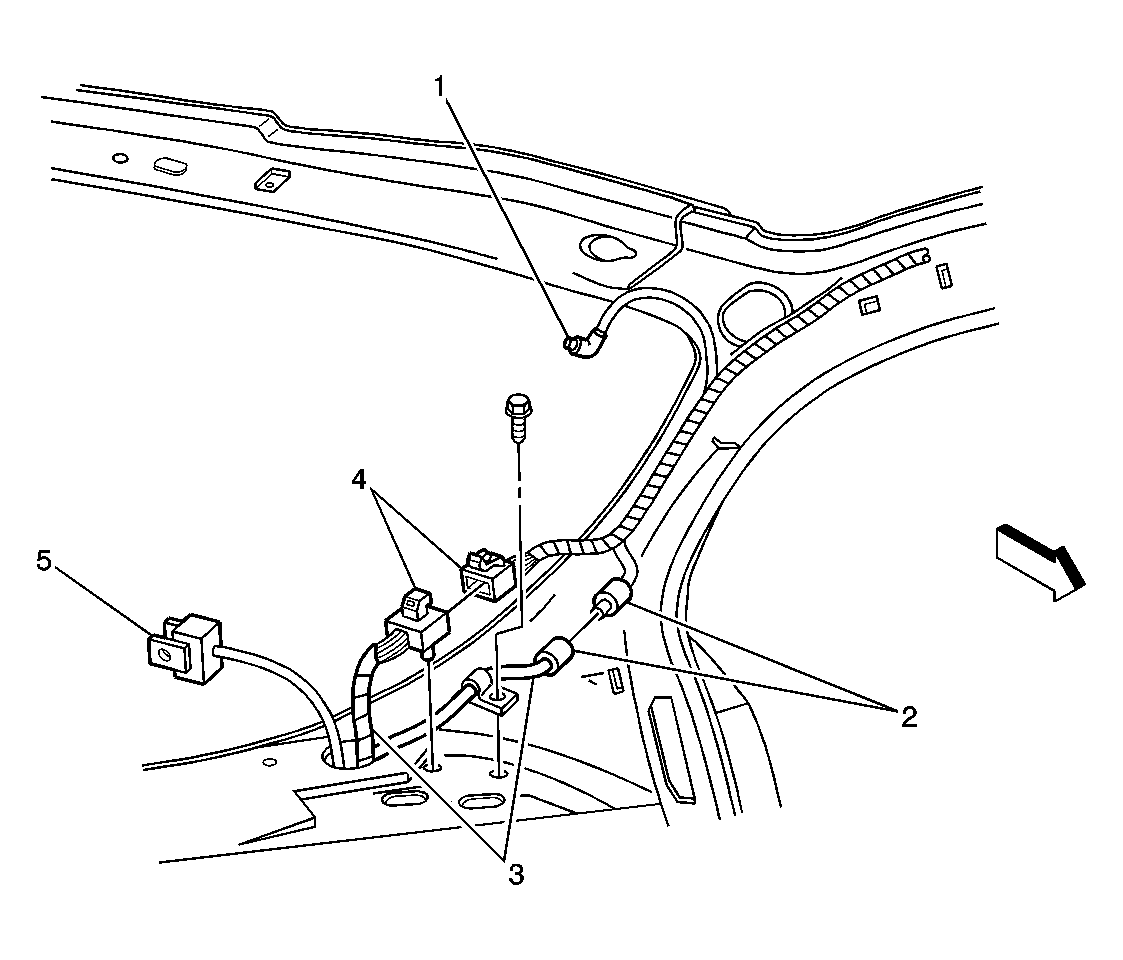

| Callout | Component Name |
|---|---|
| 1 | Cellular Antenna Connector (UE1) |
| 2 | C404 (UE1) |
| 3 | Body Wiring Harness |
| 4 | C403 (UE1) |
| 5 | Navigation Antenna Connector (UE1) |
