2005 Buick Century BaseFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Turn the steering wheel fully to the left.
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
- Remove the right tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.

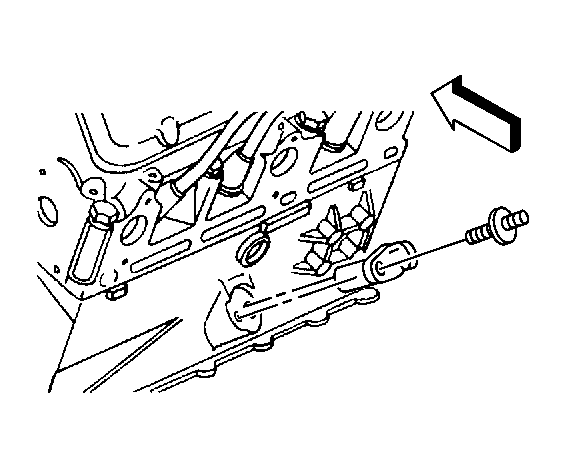

- Disconnect the crankshaft position (CKP) sensor electrical connector.
- Remove the CKP sensor bolt.
- Remove the CKP sensor.
- Inspect for wear, cracks, or leakage if the CKP sensor is not being replaced.
