2005 Buick Allure (CANADA) V6-3.6LFACTORY OEM SERVICE PROCEDURE
Coolant Temperature Sensor/Switch (For Computer): Service and Repair
ENGINE COOLANT TEMPERATURE (ECT) SENSOR REPLACEMENT
REMOVAL PROCEDURE
CAUTION: Allow sufficient time for the engine to cool before removing the ECT sensor. A hot engine may cause an excessive coolant loss or a personal injury.
1. Turn the ignition OFF.
2. Partially drain the cooling system. Refer to Draining and Filling Cooling System.

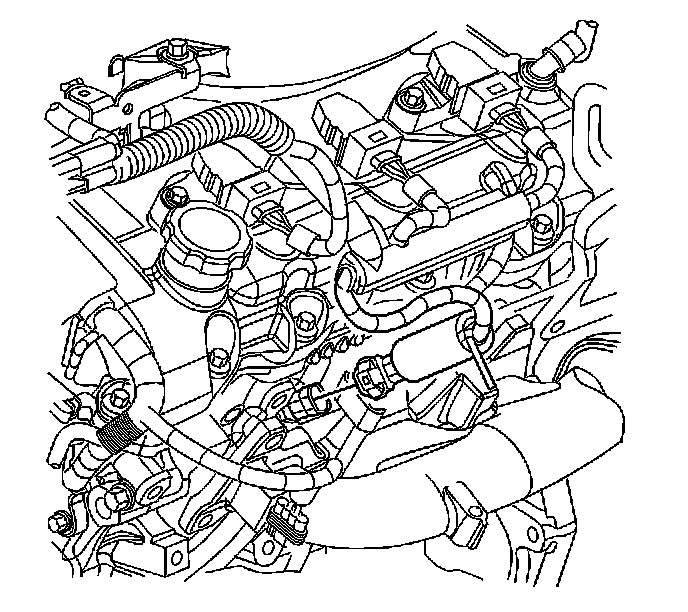

3. Remove the coolant temperature sensor electrical connector.

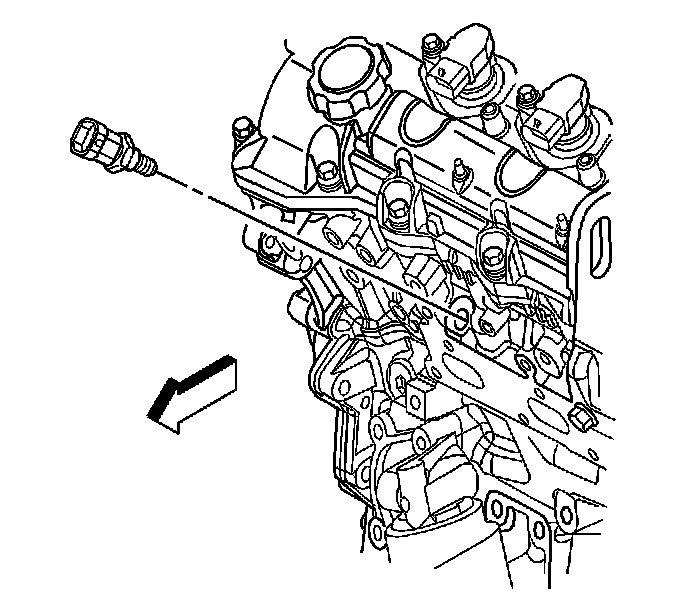

4. Remove the coolant temperature sensor.
INSTALLATION PROCEDURE
1. Install the coolant temperature sensor.
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten the sensor to 22 N.m (16 lb ft).
2. Install the coolant temperature sensor electrical connector.
3. Inspect and fill the cooling system as necessary.
