2005 Buick Allure (CANADA) V6-3.6LFACTORY OEM SERVICE PROCEDURE
Air Flow Meter/Sensor: Service and Repair

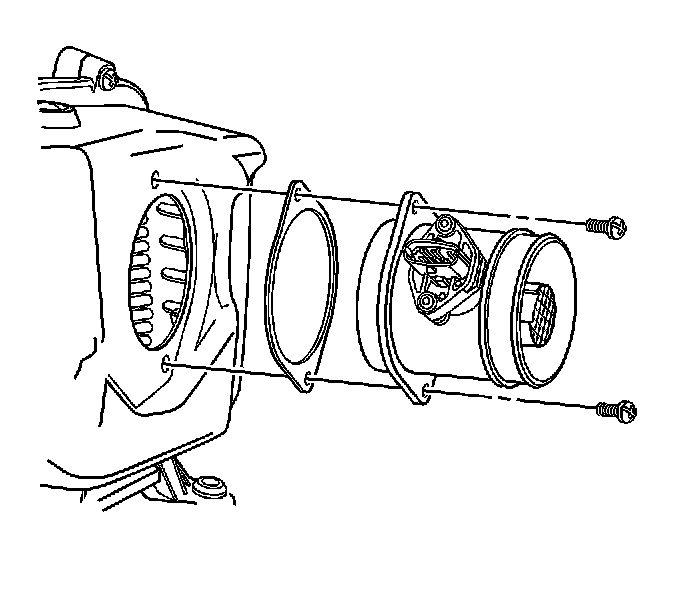

MASS AIR FLOW (MAF)/INTAKE AIR TEMPERATURE (IAT) SENSOR REPLACEMENT
REMOVAL PROCEDURE
1. Turn the ignition OFF.
2. Remove the mass air flow (MAF) electrical connector.
3. Remove the air cleaner intake duct.
4. Remove the MAF sensor fasteners.
5. Remove the MAF sensor and the MAF sensor seal.
INSTALLATION PROCEDURE
1. Install the new MAF sensor seal and the MAF sensor.
2. Install the MAF sensor screws.
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten the MAF sensor screws to 4 N.m (35 lb in).
3. Install the air cleaner intake duct.
4. Install the MAF electrical connector.
