2004 Buick Regal LSFACTORY OEM SERVICE PROCEDURE

Removal Procedure

  1. Remove the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement (L36) or Fuel Injector Sight Shield Replacement (L67) in Engine Mechanical - 3.8L.
  2. Remove the left instrument panel sound insulator. Refer to Closeout/Insulator Panel Replacement - Left in Instrument Panel, Gages and Console.
    3. Fig 1: Locating Accelerator Pedal Components
    GM12287Courtesy of GENERAL MOTORS CORP.
  3. Remove the accelerator cable (5) from the accelerator pedal (1).
  4. Attach a piece of mechanics wire to the end of the accelerator cable for aid in the installation of the cable.
    5. Fig 2: View Of Accelerator Cable Through Bulkhead
    GM12262Courtesy of GENERAL MOTORS CORP.
  5. Squeeze the accelerator cable cover tangs.
  6. Push the accelerator cable through the bulkhead.
    7. Fig 3: View Of Accelerator Cable Retaining Clips
    GM12717Courtesy of GENERAL MOTORS CORP.
  7. Remove the accelerator cable from the retaining clip.
    8. Fig 4: View Of Accelerator Cable At Throttle Body Lever
    GM12265Courtesy of GENERAL MOTORS CORP.
  8. Remove the accelerator cable from the throttle body lever.
    9. Fig 5: View Of Accelerator Cable At Accelerator Controls Cable Bracket
    GM12258Courtesy of GENERAL MOTORS CORP.
  9. Remove the accelerator cable from the accelerator controls cable bracket.

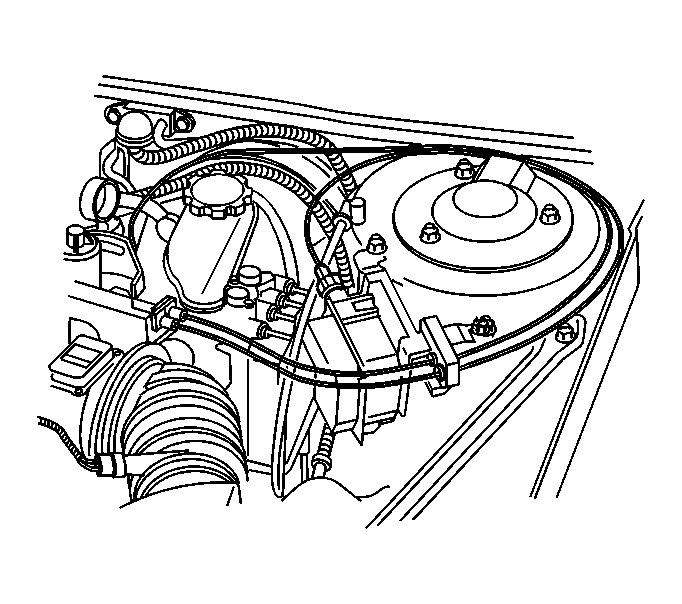

    10. Fig 6: View Of Accelerator Cable Routing
    GM12715Courtesy of GENERAL MOTORS CORP.
  10. Remove the accelerator cable from the vehicle and verify routing for installation.
  11. Remove the mechanics wire from the end of the accelerator cable.
