2003 Buick Century BaseFACTORY OEM SERVICE PROCEDURE
Automatic Transmission Shift Lock Control Component Views

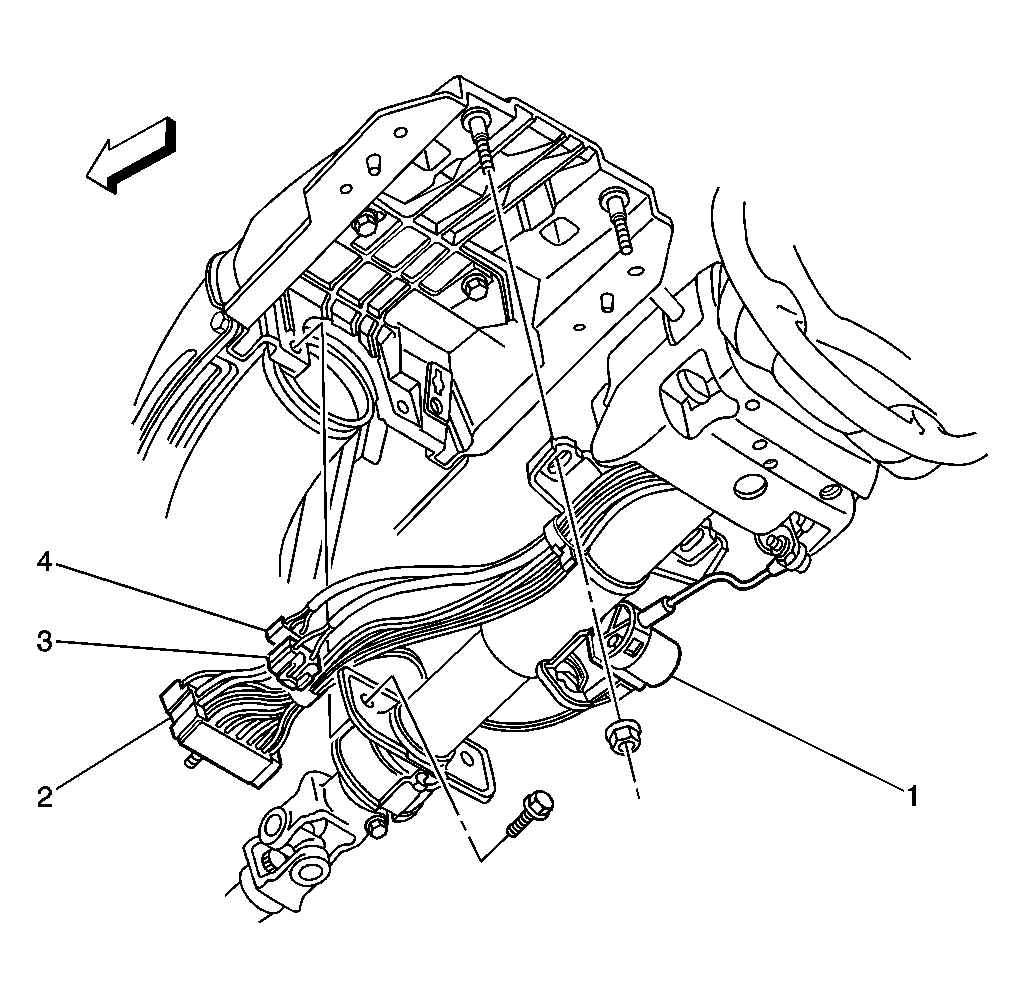

| Callout | Component Name |
|---|---|
| 1 | Automatic Transmission Shift Lock Control Solenoid (Century) |
| 2 | C201 |
| 3 | C205 (UK3) |
| 4 | C207 |

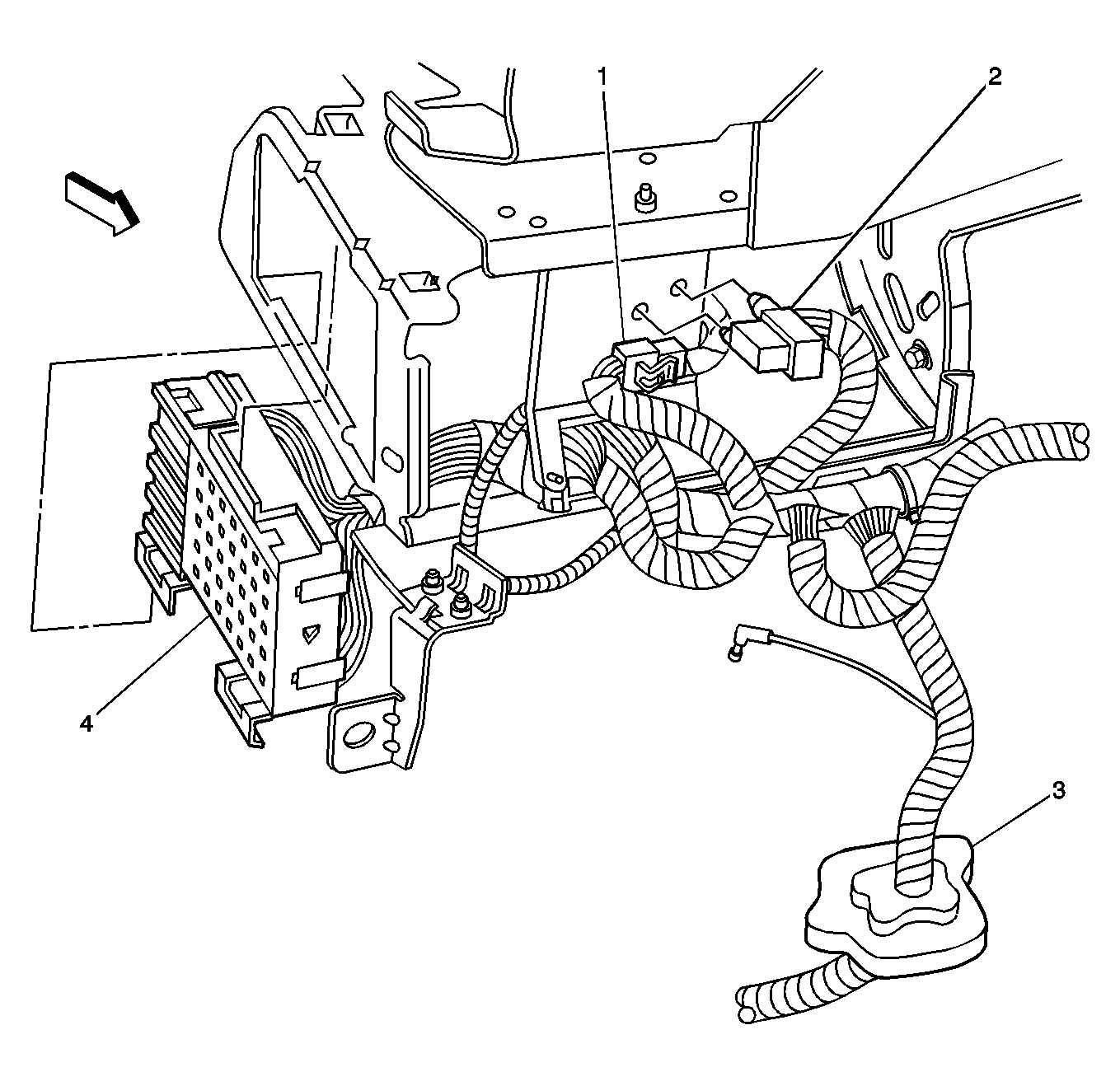

| Callout | Component Name |
|---|---|
| 1 | A/T Shift Lock Control Switch |
| 2 | A/T Shift Lock Control Switch Connector |
| 3 | I/P Wiring Harness |
| 4 | C240 |
| Callout | Component Name |
|---|---|
| 1 | Park Lamp Relay |
| 2 | Brake to Shift Relay |
| 3 | P100 |
| 4 | Fuse Block-I/P |
