2003 Buick Century BaseFACTORY OEM SERVICE PROCEDURE
Installation Procedure
- If you are replacing the VCIM, record the 10-digit standard identification (STID) number and the 11-digit electronic serial number (ESN) from the labels on the new module.

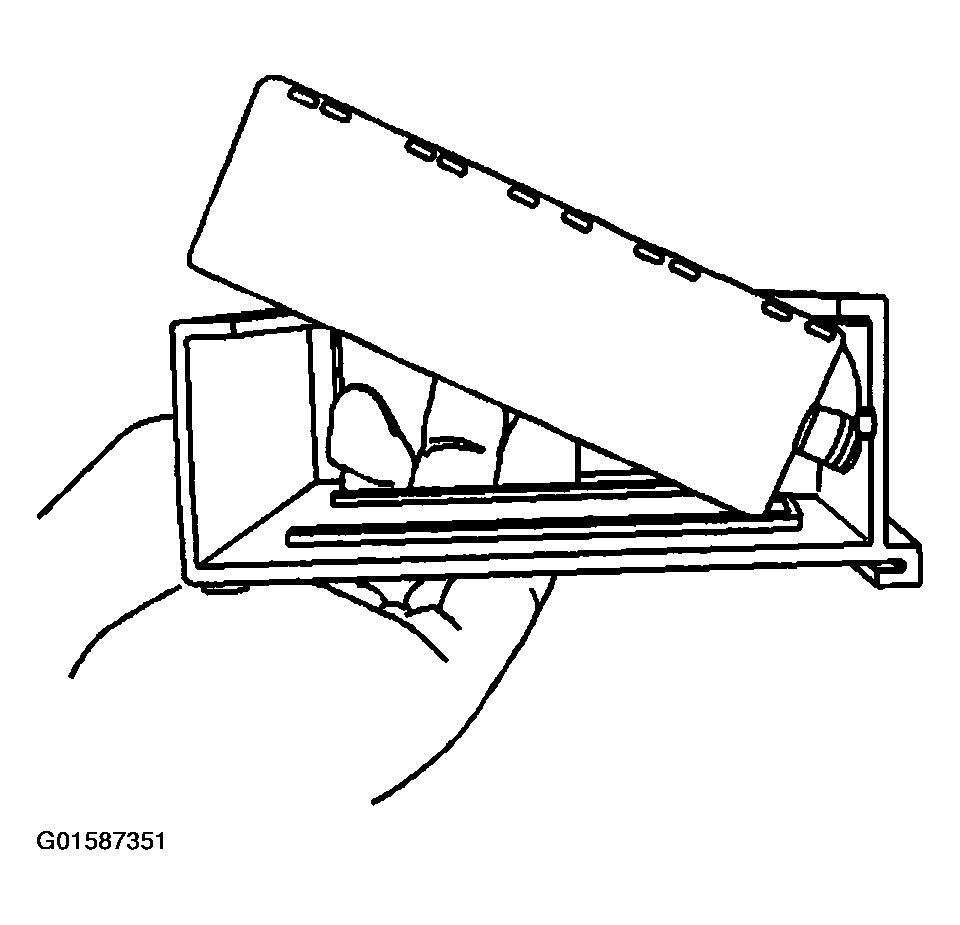

- Align the connector side of the module to the large cutout on the plastic bracket. Insert the module into the plastic bracket. Make sure the small GPS connector is inserted into the small round hole in the plastic bracket.

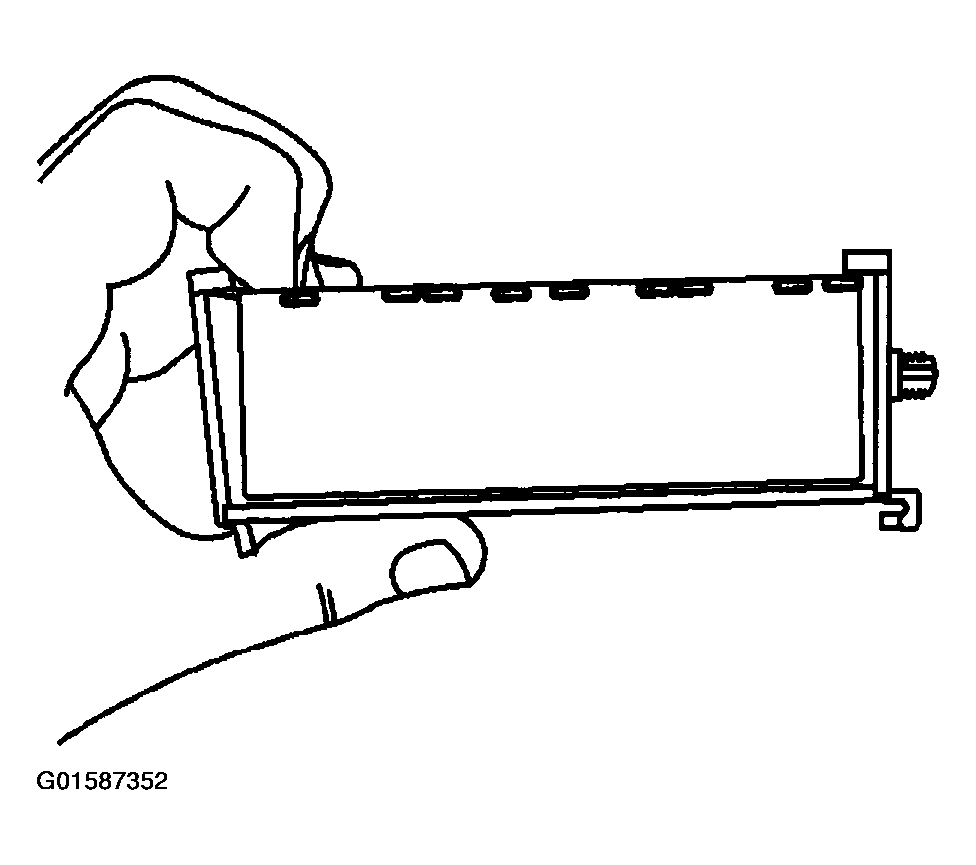

- Spread the large tang side of the plastic bracket over the edge of the module. The bottom, undercut edge of the plastic bracket will snap over the bottom of the module when fully seated.

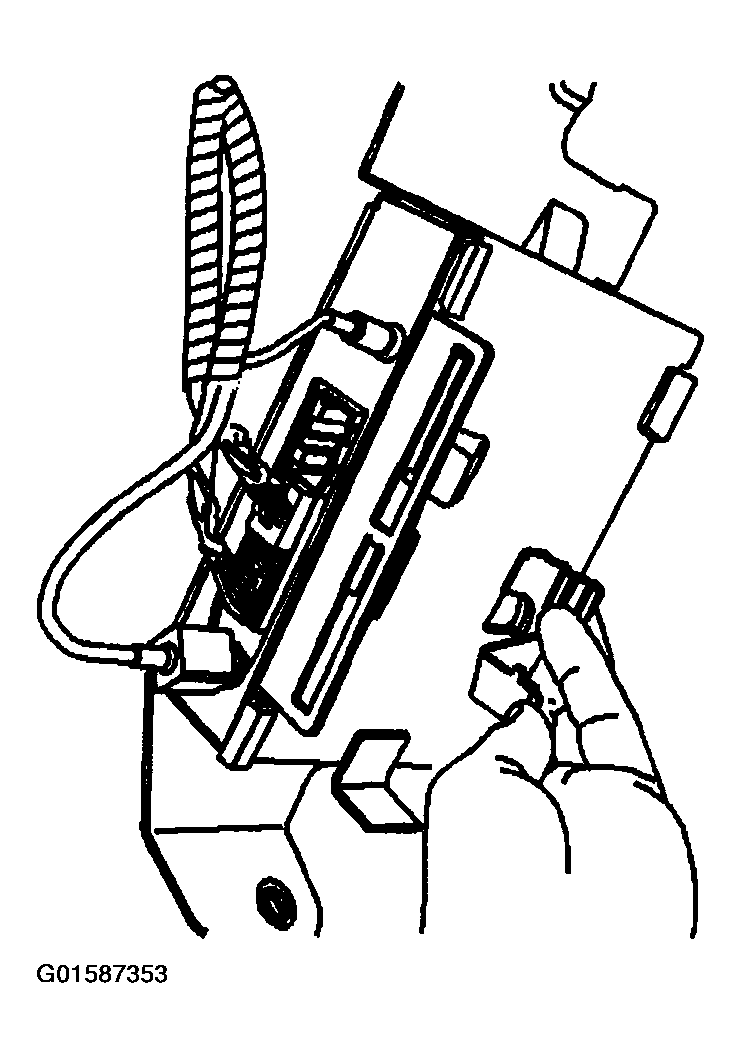

- The connectors on the module must be outboard. Slide the plastic bracket assembly outboard, under the metal bracket.
- Engage the outboard plastic tabs to the outboard edge of the metal bracket.
- Squeeze the plastic bracket assembly upward until the large, plastic snap-fingers engage on the inboard edge of the metal bracket.
