Removal & Installation

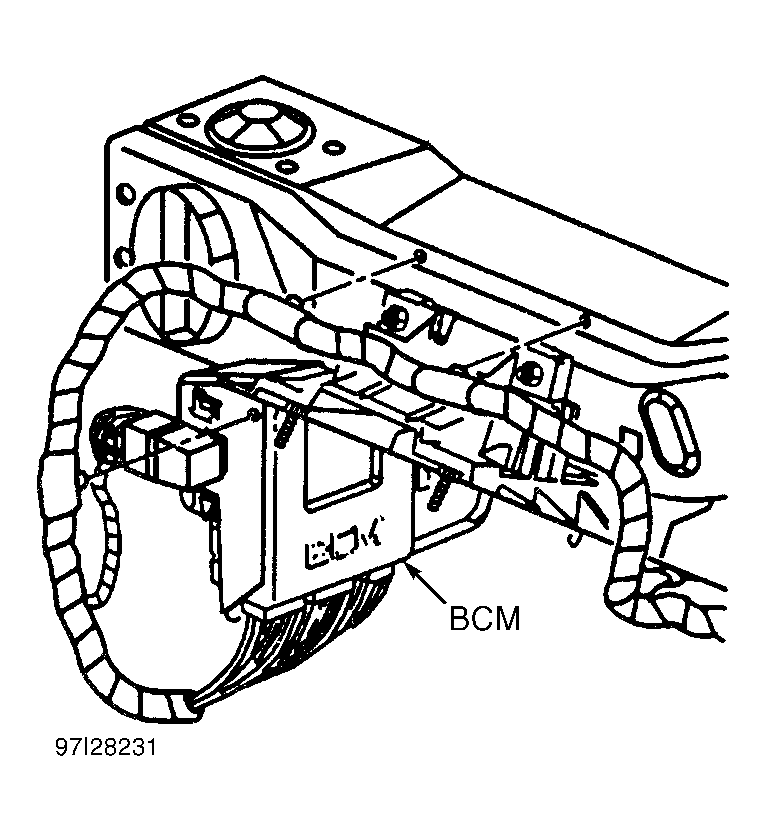

Disconnect negative battery cable. Remove left instrument panel insulator. Disconnect BCM electrical connectors. Push BCM up, and pull bottom of BCM away from and out of mounting bracket slot. Remove BCM from vehicle. See Fig 1 . To install, reverse removal procedure.
