1995 Buick LeSabre V6-3.8L VIN KFACTORY OEM SERVICE PROCEDURE
PCM Connector E-F (Blue)
POWERTRAIN CONTROL MODULE (PCM) VOLTAGE CHART
This PCM voltage chart is for use with a digital voltmeter to further aid in diagnosis. The voltages you get may vary due to low battery charge or other reasons, but they should be very close. The B+ symbol indicates a nominal system voltage of 12-14 volts.
CONDITIONS FOR TESTING
^ Engine at operating temperature (upper radiator hose hot).
^ Engine idling in "Closed Loop" (for "Engine Run" column) in park or neutral.
^ Test terminal not grounded.
^ Scan tool not installed.
^ Accessories "OFF."
NOTE: Before checking voltages, be sure PCM and engine grounds are clean and tight.
CHART LEGEND
* Less than 0.5 volts.
** If equipped.
*** Foot off brake.
(1) B+ for 1st 2 seconds.
(2) Varies.
(3)Varies with temperature.

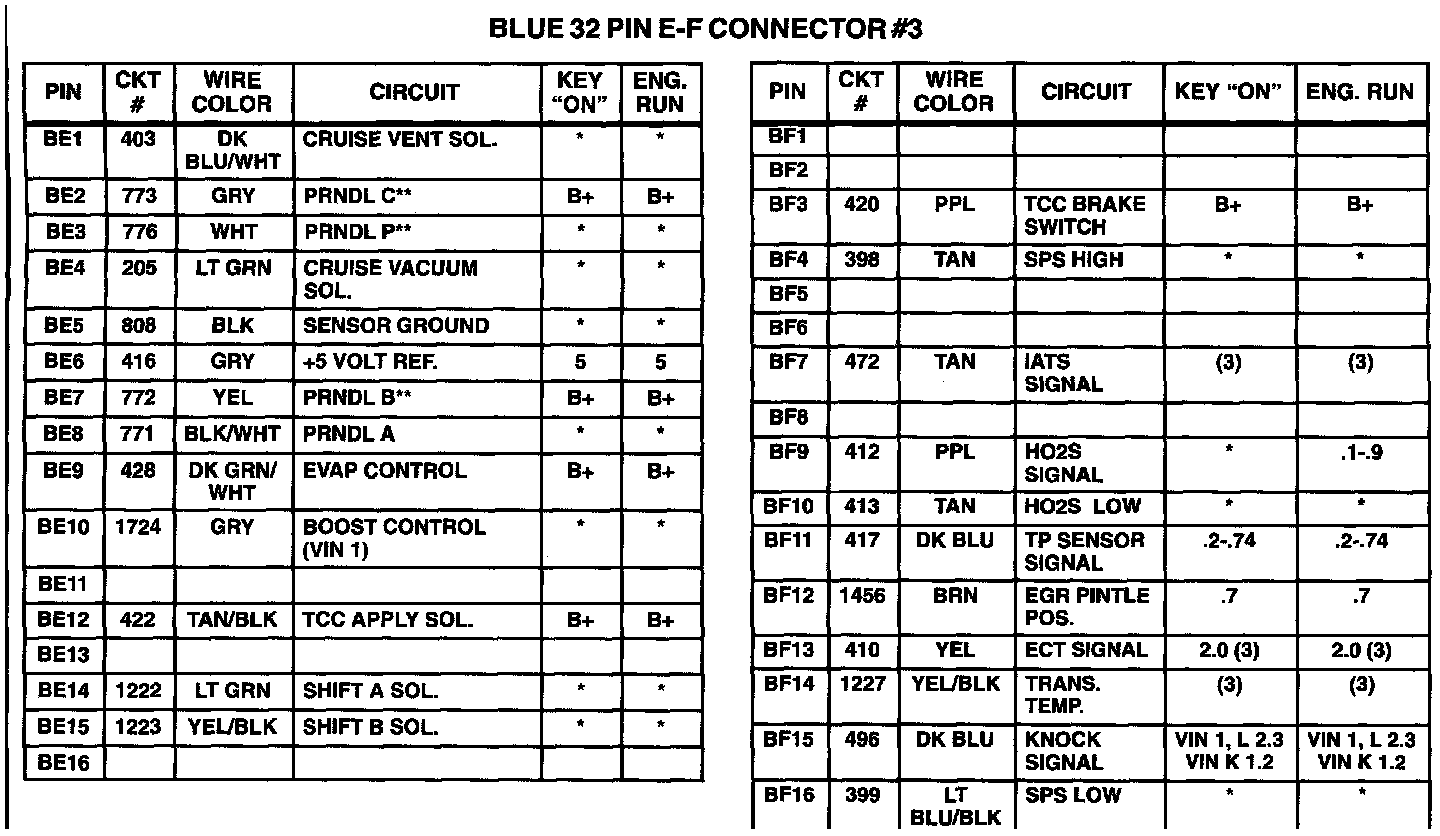

BLUE 32 PIN CONNECTOR
This PCM voltage chart is for use with a digital voltmeter to further aid in diagnosis. The voltages you get may vary due to low battery charge or other reasons, but they should be very close. The B+ symbol indicates a nominal system voltage of 12-14 volts.
CONDITIONS FOR TESTING
^ Engine at operating temperature (upper radiator hose hot).
^ Engine idling in "Closed Loop" (for "Engine Run" column) in park or neutral.
^ Test terminal not grounded.
^ Scan tool not installed.
^ Accessories "OFF."
NOTE: Before checking voltages, be sure PCM and engine grounds are clean and tight.
CHART LEGEND
* Less than 0.5 volts.
** If equipped.
*** Foot off brake.
(1) B+ for 1st 2 seconds.
(2) Varies.
(3)Varies with temperature.
BLUE 32 PIN CONNECTOR

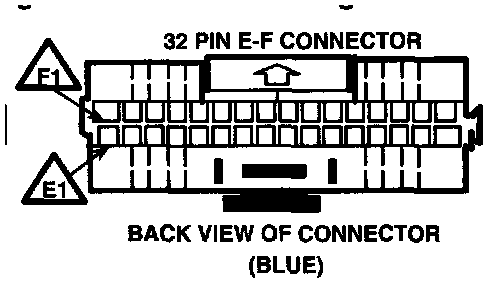

32 Pin E-F Connector (BLUE):
Powertrain Control Module (PCM) Connector (Blue E-F):
