1992 Buick Roadmaster BaseFACTORY OEM SERVICE PROCEDURE
Front Door Latch Module Assembly: Installation

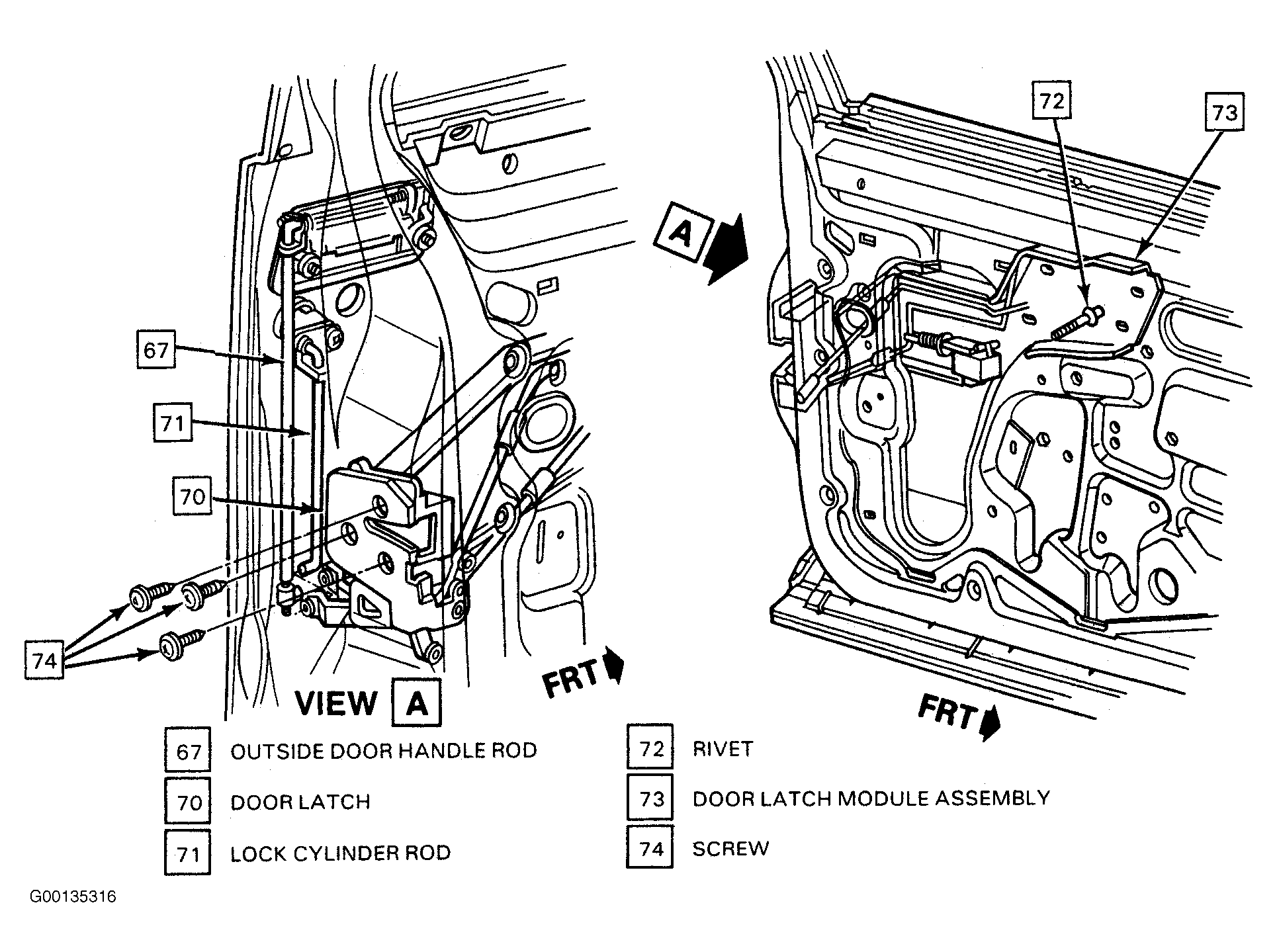

- Install door latch module assembly (73). See Fig 1 .
- Connect wire harness to lock actuator connector.
- Install lock cylinder rod (71) to door latch (70). See Fig 1 .
- Install outside door handle rod (67) to door latch (70).
- Hold latch module assembly tight against door facing and install all attaching screws (74). Verify all screws (74) are driven at a 90-degree angle to door facing.
- Attach the upper most forward rivet (72) first then install all rivets. See Fig 1 .
- Install rear window run channel retainer. See REAR WINDOW RUN CHANNEL RETAINER .
- Reposition water deflector and install door trim panel.
