COMPONENT LOCATIONS

Component	Location
Circuit Breaker C	In Fuse Block
Fuse Block	Mounted To Left Side Of Instrument Panel, Accessible With Left Front Door Open. See Fig 1 .
Left Front Window Motor	Left Front Door. See Fig 2 .
Left Rear Window Motor	Left Rear Door. See Fig 3 .
Left Rear Window Switch	Left Rear Door. See Fig 3 .
Master Power Window Switch Assembly	Center Of Left Front Door. See Fig 2 .
Right Front Window Motor	Right Front Door. See Fig 4 .
Right Front Window Motor Right Front Window Switch	Right Front Door. See Fig 4 .
Right Rear Window Motor	Right Rear Door. See Fig 5 .
Right Rear Window Motor & Right Rear Window Switch	Right Rear Door. See Fig 5 .
C303 (6 Cavity)	Crosscar Harness To Body Harness, Behind Left Kickpad At Base Of "A" Pillar. See Fig 2 .
G200	Behind Base Of Left "A" Pillar, Behind Left Kickpad. See Fig 2 .
P300	Between Left Rear Door And "B" Pillar. See Fig 3 .
P301	Between Right Rear Door And "B" Pillar. See Fig 5 .
P302	Between Right Front Door And "A" Pillar. See Fig 4 .
P303	Between Left Front Door And "A" Pillar. See Fig 2 .
S300	Cross Car Harness, Approximately 4.7" (12 cm) From C302 Breakout.
S311	Cross Car Harness, Approximately 19" (49 cm) From C300 Breakout.

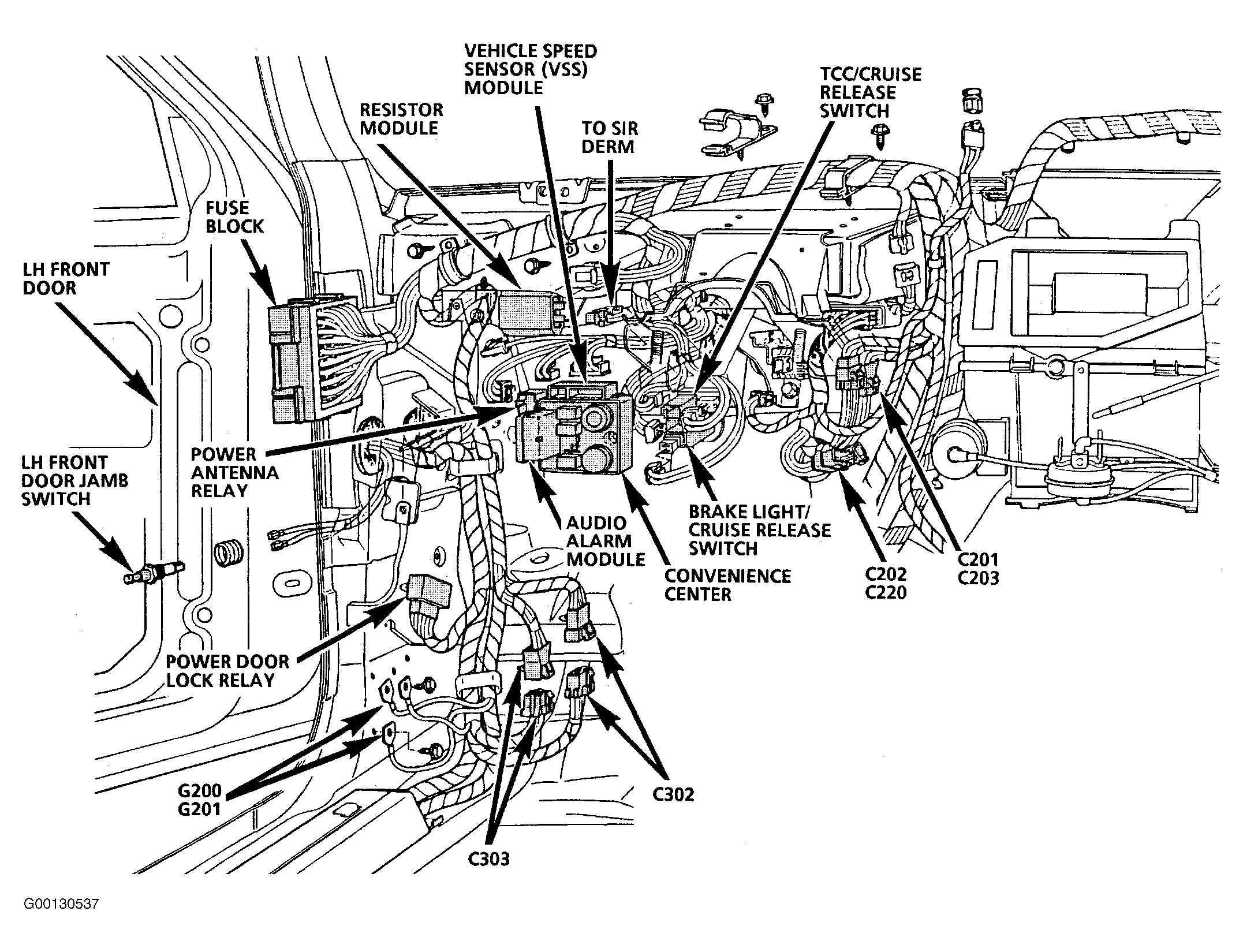

Fig 1: Locating Fuse Block

Courtesy of GENERAL MOTORS CORP.
