Securing engine in installation position (N55T0 Engine) (2016-2018)
Special tools required:
- 006100
- 006130
- 00 6 050
- 00 6 053
- 00 6 070
Observe following instructions relating to special tool:
- Prior to each use, check the special tools for defects, modifications and operational reliability.
- Damaged/modified special tools must not be used!
- No changes or modifications may be made to the special tools!
- Keep special tools dry, clean and free of grease.
Special tools
Necessary preliminary work:
- Secure the engine compartment lid in the service position.
- Remove front UNDERBODY PROTECTION .
- F33 CONVERTIBLE ONLY, REMOVE FRONT-END STRUTS .

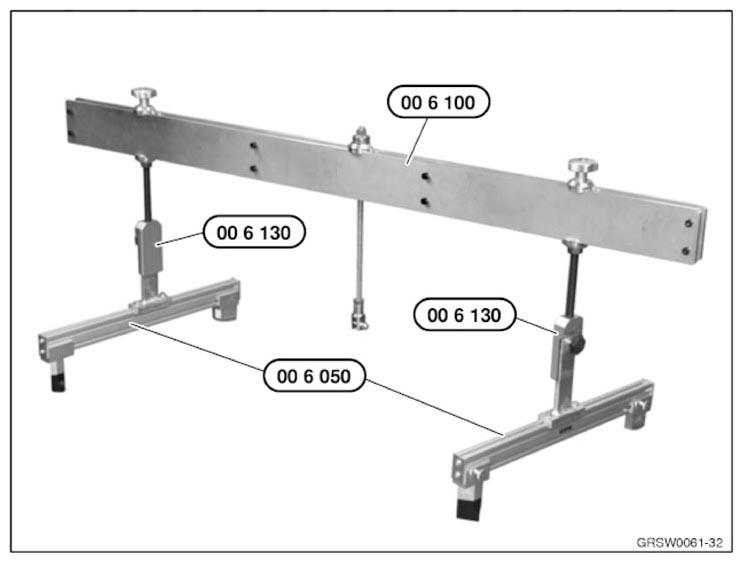

Complete the cross member 00 6 100 with the special tools, 00 6 130, 00 6 050, 00 6 053 and 00 6 070.

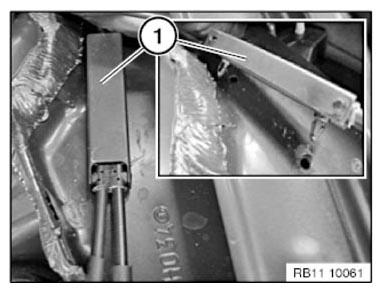

Unclip Bowden cable (1) for hood opening.

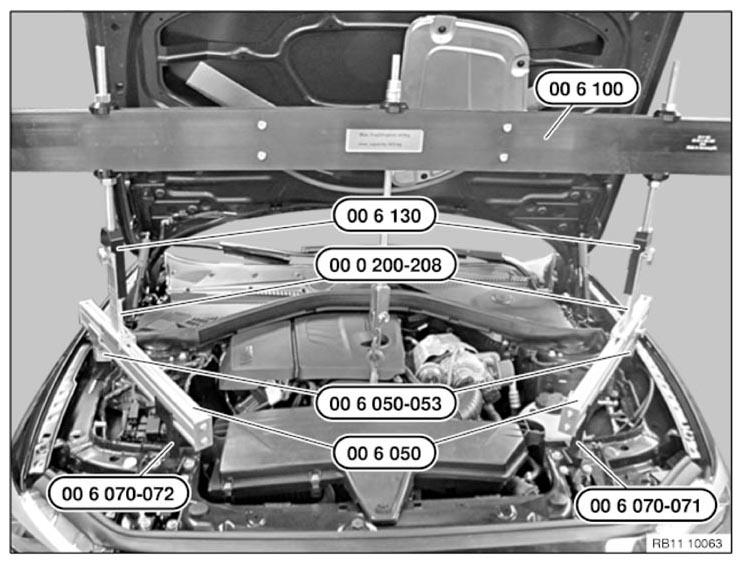

Fit cross-member 00 6 100 with a 2nd person helping.

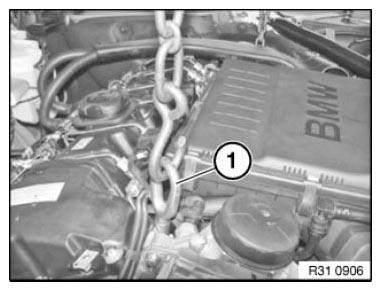

Screw towing hook (1) into engine block.
Attach chain to towing eye.
Tighten down all screws and nuts on cross-member 00 6 100.
