Removing and installing engine (S55 Engine) (2019-2022)

Special tools required:

• 11 0 000
• 11 8 680

Necessary preliminary tasks:

• DISCONNECT THE BATTERY CABLE NEGATIVE TERMINAL .
• MOVE engine compartment lid into service position.
• Remove the front axle completely with the engine and transmission.

To remove or refit the engine, the towing hook 72 15 8 108 670 is required.

Tightening torque 11 12 5AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

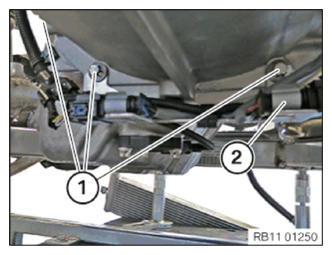

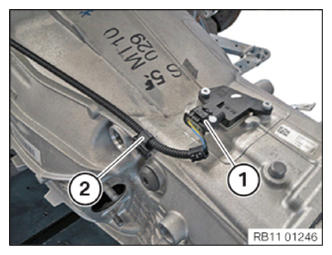

Disconnect plug connection (1).

Cable routing (2)

Courtesy of BMW OF NORTH AMERICA, INC.

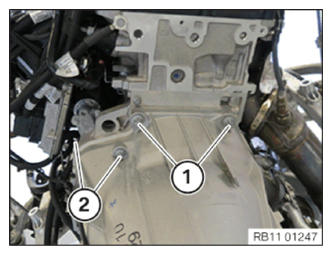

Release screws (1).

Unfasten screws (2).

Release starter motor (2) from transmission.

Courtesy of BMW OF NORTH AMERICA, INC.

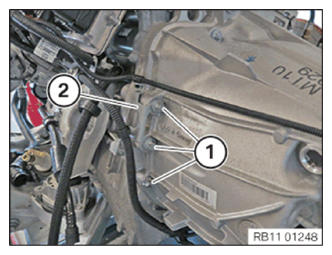

Release screws (1).

Lay cable clip (2) to one side.

Courtesy of BMW OF NORTH AMERICA, INC.

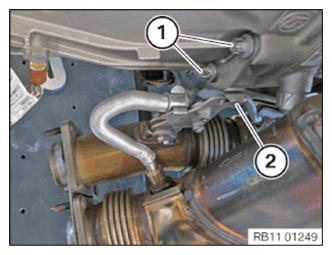

Release screws (1).

Disconnect oxygen sensor cable from holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Release aluminium screws (1).

Lay down cable clip (2) loosely.

Courtesy of BMW OF NORTH AMERICA, INC.

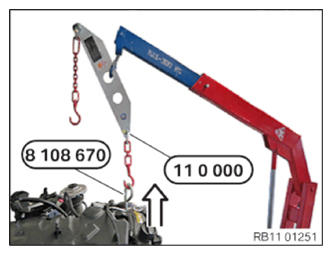

Attach special tool 11 0 000 in eye 8 108 670.

Slightly raise the engine with the workshop crane.

Courtesy of BMW OF NORTH AMERICA, INC.

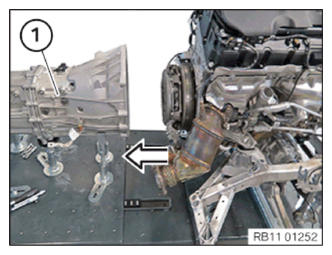

Disconnect transmission (1) from engine in direction of arrow on table lift 81 22 2 184 136.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation of special tool 11 8 680 on rear lifting eye (transmission side).

Position special tool 11 8 680 in the lifting eye with the lock pin (1).

Pull ball lock pin (1) toward the rear until both balls (2) are pushed outward.

Installation note:

For checking the correct installation of the special tool 11 8 680.

There must be a 6.5 mm gap between ball lock pin (1) and ball lock pin housing.

The gap dimension can be checked using a 6.5 mm drill.

Courtesy of BMW OF NORTH AMERICA, INC.

Attach special tool 11 0 000 to workshop crane.

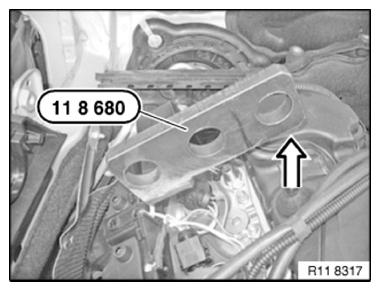

Suspend special tool 11 0 000 from the designated mounting eyelets of special tool 11 8 680 only (see arrow in illustration).

Courtesy of BMW OF NORTH AMERICA, INC.

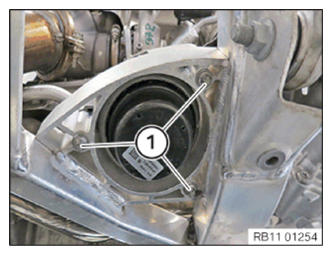

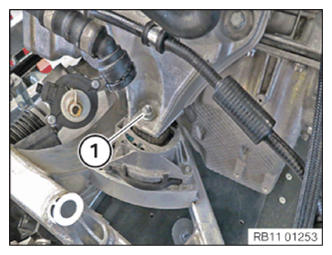

Undo bolts (1) on left engine mount.

Courtesy of BMW OF NORTH AMERICA, INC.

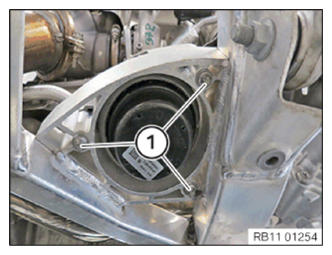

Release screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

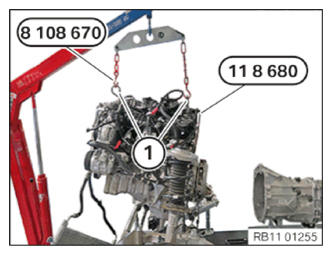

Suspend special tool 11 0 000 from the designated mounting eyelets (1) only.

Lift out engine with workshop crane.

Mount engine on ASSEMBLY STAND .

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position engine on front axle support with workshop crane.

Screw in screws (1).

Tightening torque: 22 11 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten nut (1).

Tightening torque: 22 11 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Move engine to installation position with workshop crane.

Courtesy of BMW OF NORTH AMERICA, INC.

Join transmission (1) to engine.

Screw on transmission. Refer to REMOVING AND INSTALLING TRANSMISSION (GS6-45BZ) (S55 ENGINE) (2019-2022) or REMOVING AND INSTALLING TWIN-CLUTCH GEARBOX (GS7D36SG) (S55 ENGINE) (2019-2022) .

Courtesy of BMW OF NORTH AMERICA, INC.

Reassemble the vehicle.
