Replacing Front Left Wheel Arch

When replacing front right wheel arch: observe specific procedure regarding the vehicle identification number, (order new body part with vehicle identification number if necessary)

Observe procedure of REPAIR STAGE 3 .

Read contents of BODY GENERAL .

STRIP DOWN  vehicle.

Use only approved SPOT-WELDING APPARATUS  for repairs.

Place vehicle on straightening bench.

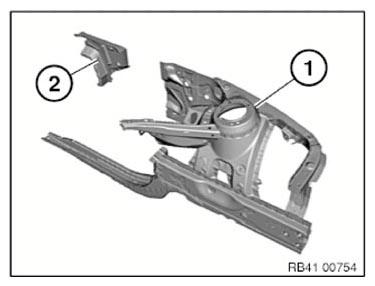

Following new body parts are required (see Electronic Parts Catalogue):

• (1) Wheel arch, front
• (2) Extension, wheel arch carrier support
• (3) Shaped part, wheel arch carrier support (not shown)

Following CONSUMABLES  are required:

Courtesy of BMW OF NORTH AMERICA, INC.

Material	Quantity
Adhesive K1	1
Blind rivet N1	8
Blind rivet N7	29
Blind rivet N3	5
Punch rivets N5	12
Sealant D1
Cleaning agent R1	1

New part preparation

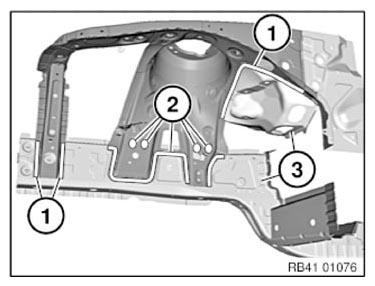

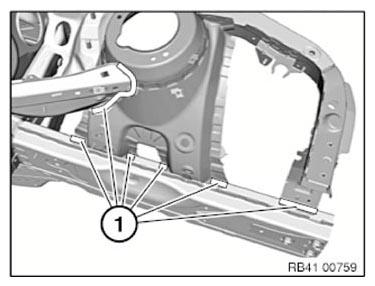

Open welded connections in areas (1).

Centre punch the welded connections in area (2) in the middle and drill out with a drill diameter of 6.8 mm.

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1).

Centre punch the welded connections in area (2) in the middle and drill out with a drill diameter of 6.8 mm.

Remove components (3) which are not required.

Courtesy of BMW OF NORTH AMERICA, INC.

The new part is joined the areas (1) by plug-welding.

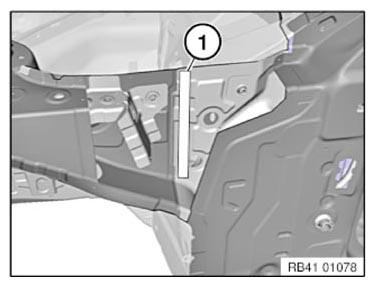

Open welded connections in area (1).

Remove component (2) which is not required.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

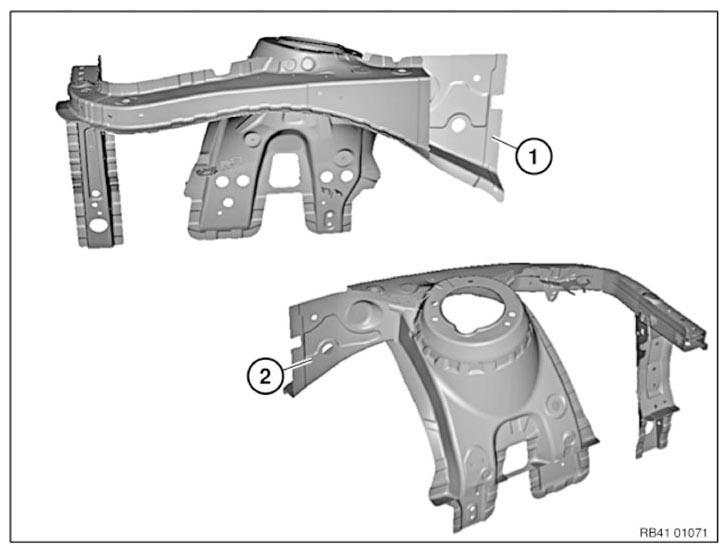

Views of the wheel arch (new part) to be fitted:

• (1) View from outside
• (2) View, engine compartment

Removing the wheel arch

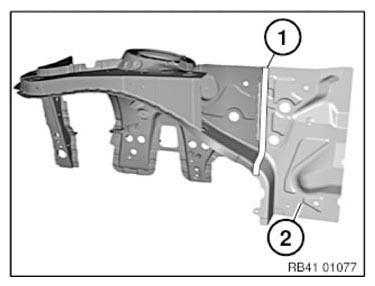

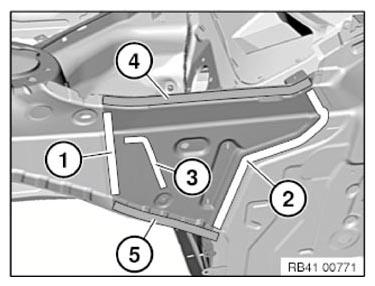

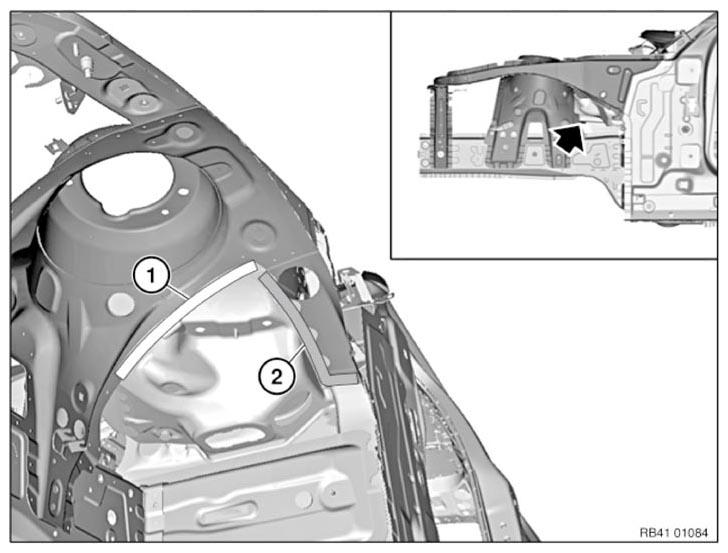

Mark severance cut (1) at component edge and cut.

Mark severance cut (2) as pictured and cut.

LOOSEN  spot-welded adhesive joints in area (3).

Open welded connections in area (4).

Release metal section from cavity sealing (5) and remove.

Remove cavity sealing (5).

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

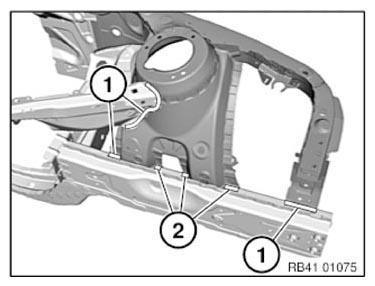

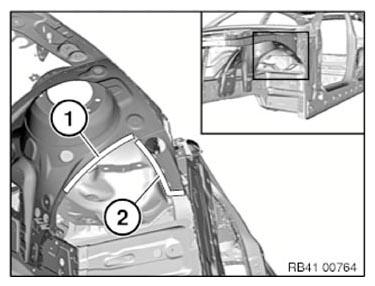

Open welded connections In areas (1) and (2).

Open welded connections In areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.

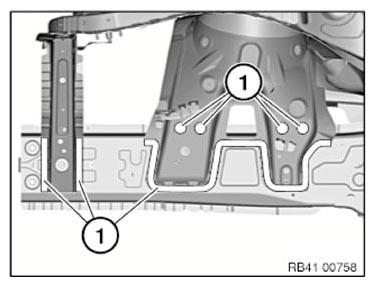

Open welded connections in areas (1).

Remove the wheel arch.

Courtesy of BMW OF NORTH AMERICA, INC.

Fit in new part

Adjust wheel arch new part to fit with alignment bracket or universal mount and secure.

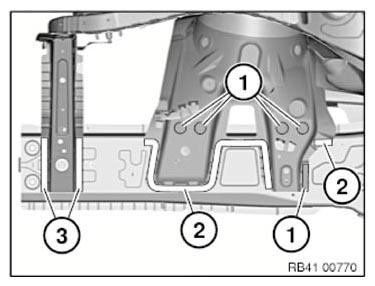

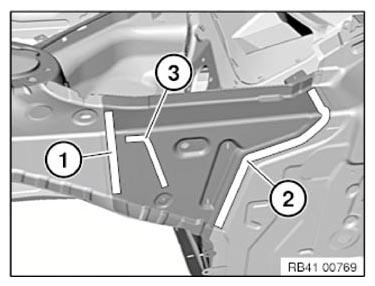

Areas (1) and (2):  Transfer existing 6.8 mm diameter bore holes for blind rivets to engine support.

In areas (3), prepare new part and vehicle for plug-welding.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

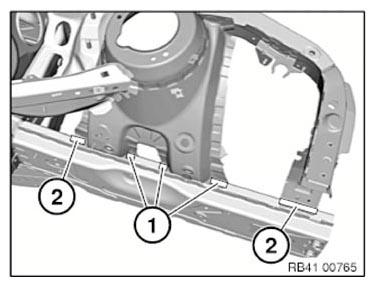

In areas (1) and (2), prepare new part and vehicle for plug-welding.

Areas  (1): Transfer existing 6.8 mm diameter bore holes for blind rivets to engine support.

In areas (2), prepare new part and vehicle for plug-welding.

Courtesy of BMW OF NORTH AMERICA, INC.

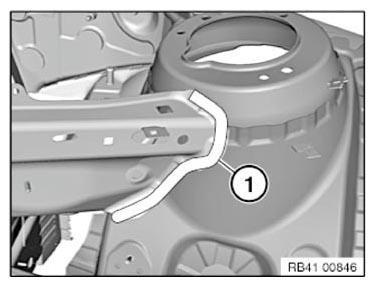

In area (1), prepare new part and vehicle for plug welding.

Courtesy of BMW OF NORTH AMERICA, INC.

In area (1), prepare new part and vehicle for plug welding.

Courtesy of BMW OF NORTH AMERICA, INC.

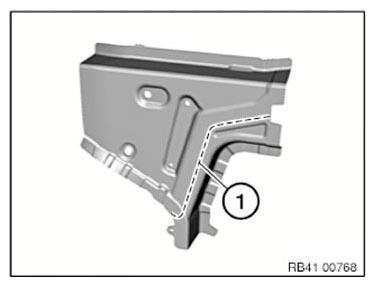

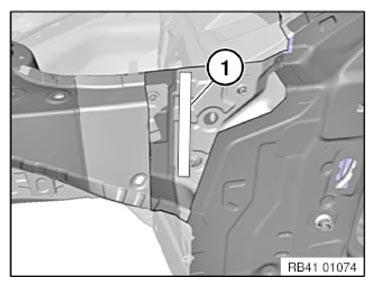

Mark and disconnect severance cut on the new part according to the severance cut on the vehicle + 20 mm added material (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust extension, wheel arch carrier support new part to fit and secure.

In areas (1) and (2), set 6.8 mm diameter bore holes for blind rivets.

Area	Number
1	3
2	5

Courtesy of BMW OF NORTH AMERICA, INC.

In area (3), set 4 4.2 mm diameter bore holes for blind rivets N3.

Remove new parts and deburr bore holes.

Installing new part, front wheel arch

Clean bonding surfaces with cleaning agent R1.

Apply adhesive to bonding surfaces.

Install wheel arch with alignment bracket or universal mount.

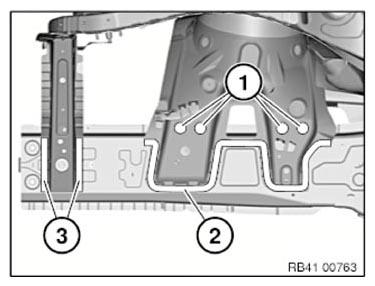

In areas (1), rivet new part with blind rivets N1.

In areas (2), rivet new part with blind rivets N7.

In areas (3) weld new part.

Courtesy of BMW OF NORTH AMERICA, INC.

In areas (1) and (2), weld new part.

Courtesy of BMW OF NORTH AMERICA, INC.

In areas (1), rivet new part with blind rivets N7.

In areas (2) weld new part.

Courtesy of BMW OF NORTH AMERICA, INC.

Weld new part in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Weld new part In area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation of extension, wheel arch carrier support

Clean bonding surfaces with cleaning agent R1.

Apply adhesive to bonding surfaces.

Apply sealant to CAVITY SEALING . Install cavity sealing.

Install extension, wheel arch carrier support.

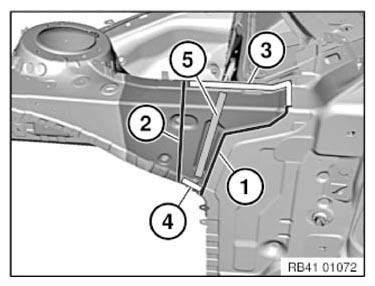

In areas (1) and (2), rivet new part with blind rivets N7.

In area (3) rivet new part with blind rivets N3.

In areas (4) and (5), rivet new part with punch rivets N5.

Area	Number
4	6
5	5

Courtesy of BMW OF NORTH AMERICA, INC.
