Replacing roof switch cluster (front) (2016-2022)
Necessary preliminary tasks:
- Remove ROOF SWITCH CLUSTER .

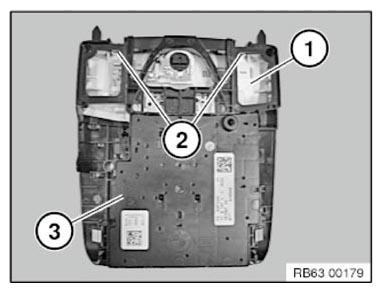

Release interior roof light (1) at clamps (2) and feed out of roof switch cluster (3).
Installation note:
Clips (2) must not be missing or damaged.
Make sure interior roof light (1) is correctly seated in roof switch cluster (3).
High-spec roof function center only:
Carry out VEHICLE PROGRAMMING/CODING .
