Removing and installing/replacing Start/Stop switch (2016-2022)
Special tools required:
- 00 9 325

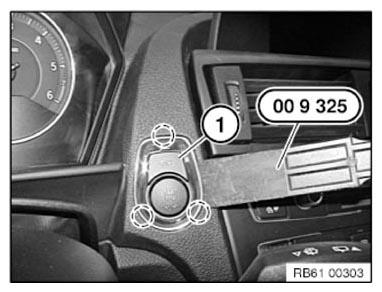

Pry out Start/Stop switch (1) at the marked retaining points using special tool 00 9 325.
Disconnect associated plug connection and remove Start/Stop switch (1).
Installation note:

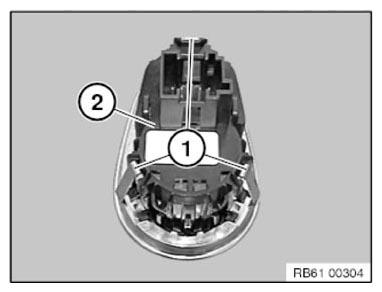

Retaining clips (1) on Start/Stop switch (2) must not be bent or damaged.
