Removing and installing/replacing distribution box (front) (2016-2022)
Special tools required:
- 00 9 325
Necessary preliminary tasks:

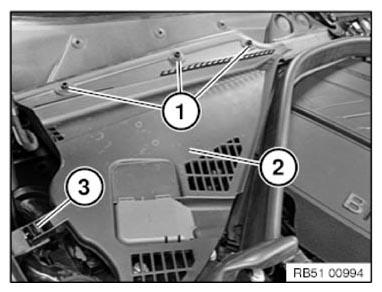

Turn locks (1) 90° counterclockwise.
Unlock catch (3).
Remove cover (2).

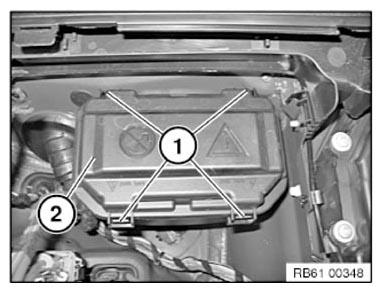

Release latch mechanisms (1) and remove lid (2).
Installation note:
Make sure cover (2) is correctly locked.
Installation note:

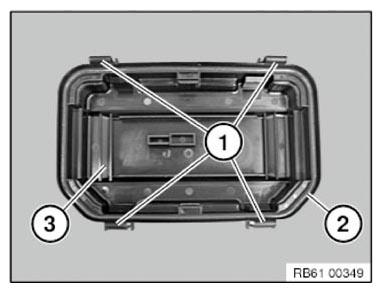

Latch mechanisms (1) and gasket (2) on lid (3) must not be damaged or missing.
Make sure gasket (2) is correctly seated in lid (3).

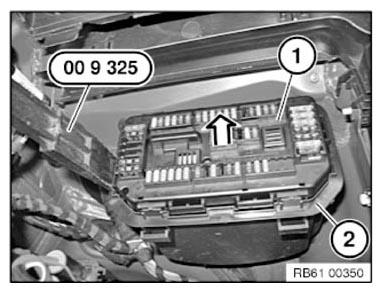

Release power distribution box (1) with special tool 00 9 325 from lower section (2) and pull power distribution box (1) upward.

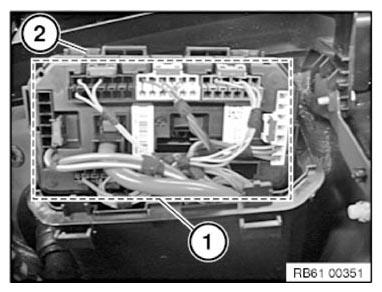

Release and disconnect all plug connections in area (1).
Remove power distribution box (2).
Installation note:
Make sure all plug connections are correctly locked.
