11 00... Service - engine oil (N74): Notes
Carry out work on the vehicle only when wearing oil- and heat-resistant protective gloves incl. forearm protection, face guard and protective apron.
Observe the exact engine oil filling capacity.
Overfilling the engine with engine oil will result in engine damage .
Checking and drip-off times (at least 15 minutes) must be observed.
Recycling:
Catch and dispose of drained engine oil in a suitable collecting vessel.
Observe country-specific waste disposal regulations.
Necessary preliminary tasks:
- Open the cover on the under trim panel.

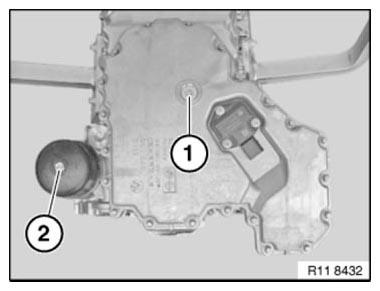

Remove screw plug (1) from oil sump and drain engine oil.
Release screw plug (2) on oil filter cover.
Release oil filter cover (1) with special tool 11 9 240 .
Tightening torque: see 1AZ in 11 42 OIL FILTER AND LINES
