61 14... Removing And Installing/Replacing Engine Compartment B+ Terminal
Necessary preliminary tasks:
- Remove cover from electronics box . See 12 90... REMOVING AND INSTALLING/REPLACING ELECTRONICS BOX (N51) , 12 90 100 REPLACING FAN FOR ELECTRONICS BOX (N52K) or 12 90 100 REPLACING FAN FOR ELECTRONICS BOX (N54) .

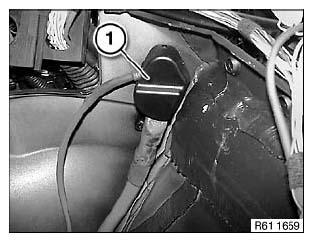

Unclip covers (1) and release nuts underneath. Tightening torque, see 61 12 4AZ in 61 12 AUXILIARY CABLE .
Remove battery positive cables.

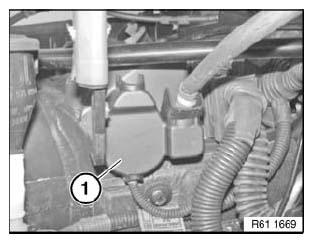

Unclip cover (1).

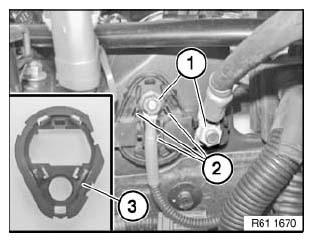

Unscrew nuts (1). Tightening torque, see 61 12 4AZ in 61 12 AUXILIARY CABLE .
Remove battery positive cables.
Release locks (2) and remove frame (3) towards rear from B+ terminal.
Unclip B+ terminal and remove towards front.
Installation:
Make sure frame (3) engages correctly in B+ terminal.
