2012 BMW X6 MFACTORY OEM SERVICE PROCEDURE

41 00... Removing and installing rivet heads

Special tools required:

  • 2 348 128
  • 72 1 210
IMPORTANT: Lay out protective mats to protect the interior against swarf from the drilled-out rivets and damage.
Lay out protective mats in the relevant working area:
  • Dashboard
  • Entrance area
  • Passenger compartment
    Fig 1: Identifying Protective Mats
    G04753865Courtesy of BMW OF NORTH AMERICA, INC.

Described for folding pack holder for head airbag:

Drill off rivet plate down to rivet shank with a 10 mm twist drill bit.

Fig 2: Drilling Rivet Plate Using Twist Drill Bit
G04753868Courtesy of BMW OF NORTH AMERICA, INC.

Described for grab handle holder:

Drill off rivet plate down to rivet shank with a 10 mm twist drill bit.

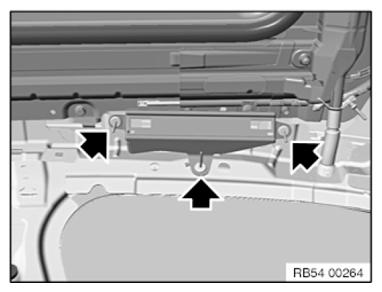

Fig 3: Locating Grab Handle Holder
G08587664Courtesy of BMW OF NORTH AMERICA, INC.

Cut off blind rivet shanks down to sheet metal as level as possible.

Fig 4: Cutting Blind Rivet Shanks
G04753870Courtesy of BMW OF NORTH AMERICA, INC.

Deburr remaining rivets with nipper pliers.

Fig 5: Removing Rivets Using Nipper Pliers
G04753871Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Apply primer to paintwork damages on side frame.

NOTE: Depending on accessibility, the rivet heads will have to be removed using special tool 2 348 128 or 72 1 210.

Press off rivet heads (1) using special tool 2 348 128 and remove.

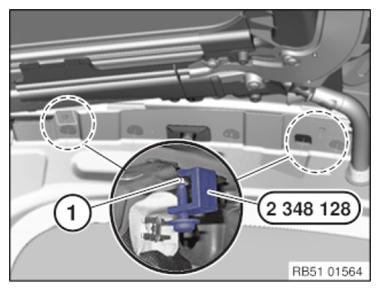

Fig 6: Pressing Rivet Heads Using Special Tool 2 348 128
G08587667Courtesy of BMW OF NORTH AMERICA, INC.

Special tool 72 1 210 for collecting rivet heads.

Shank (1) of special tool is flexible and can be adapted to the relevant body contours.

NOTE: Insert butyl in the collecting tray (2) to secure rivet heads and prevent them from falling out.
