41 00... Carrying Over Hole Pattern
When replacing a body component, it is necessary to carry over the hole pattern from the existing body to the new component.
The following pictures are a schematic representation of carrying over the hole pattern on the example of the front wheel arch.
Necessary preliminary tasks:
Adjust new part to fit with straightening attachment.

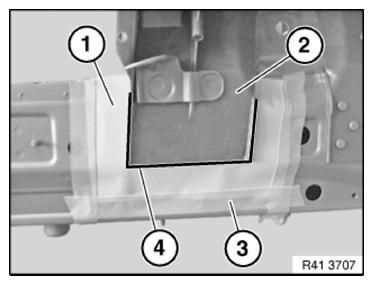

Insert paper stencil (1) between new component (2) and engine carrier and secure with adhesive tape (3).
Carry over contour (4) of new component to stencil.
Remove new component.

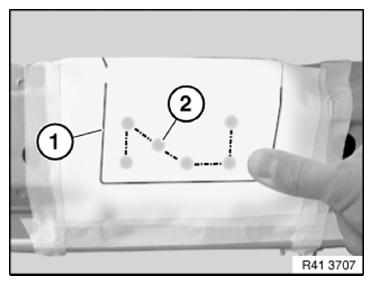

(1) = contour of new component.
Carry over positions of holes (2) to stencil by pressing down with thumbs.
Remove stencil.
