2012 BMW 335xi Automatic TransFACTORY OEM SERVICE PROCEDURE

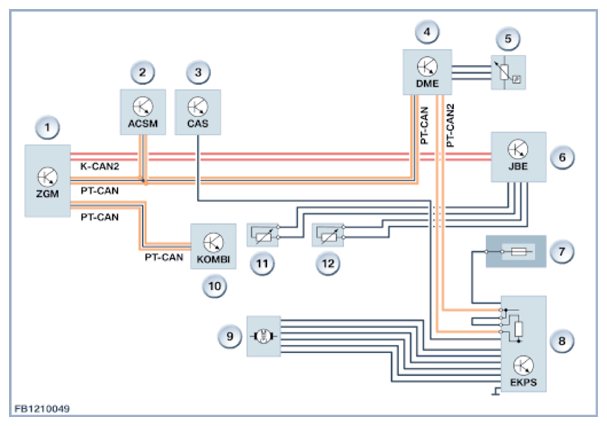

System overview
| Index | Explanation |
|---|---|
| 1 | Central gateway module (ZGM) |
| 2 | Crash Safety Module (ACSM) |
| 3 | Car Access System (CAS) |
| 4 | Digital engine electronics (DME) |
| 5 | Fuel low-pressure sensor |
| 6 | Junction Box Electronics (JBE) |
| 7 | Luggage compartment power distribution box |
| 8 | Electric fuel pump control (EKPS) |
| 9 | Electronic fuel pump |
| 10 | Instrument panel (KOMBI) |
| 11 | Fuel level sensor 2 (right) |
| 12 | Fuel level sensor 1 (left) |
