System overview

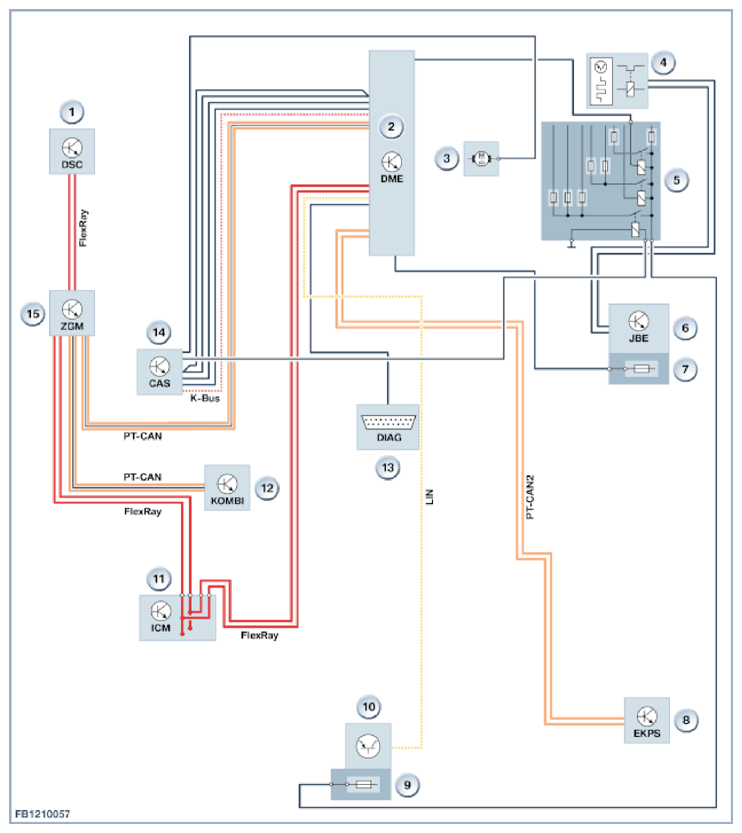

The following illustration shows the system overview of the engine control system interfaces on the F10:
| Item | Explanation |
|---|---|
| 1 | Dynamic stability control (DSC) |
| 2 | Digital engine electronics |
| 3 | Starter motor |
| 4 | Air conditioning compressor |
| 5 | Power distribution box, engine compartment |
| 6 | Junction Box Electronics (JBE) |
| 7 | Front fuse and relay module |
| 8 | fuel pump control module (EKPS) |
| 9 | Power distribution box, battery |
| 10 | Intelligent battery sensor (IBS) |
| 11 | Integrated chassis management (ICM) |
| 12 | Instrument panel (KOMBI) |
| 13 | Diagnostic socket |
| 14 | Car access system (CAS) |
| 15 | Central gateway module (ZGM) |
