2011 BMW X5 MFACTORY OEM SERVICE PROCEDURE

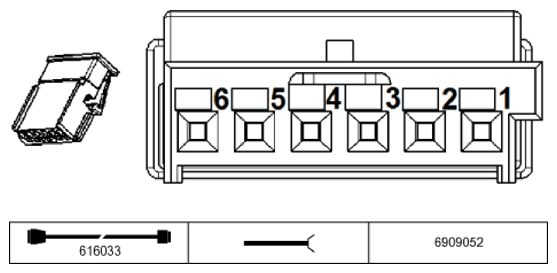

Reversing Camera X16841 Connector End View
Pin Assignments At Plug Connector X16841
| Pin | Type | Description/Signal type | Connection/Measuring notes |
|---|---|---|---|
| 0 | M | Shielding | All-round vision camera |
| 1 | A | Video signal | All-round vision camera |
| 2 | E/A | Signal, LIN bus | All-round vision camera |
| 3 | A | Video signal | All-round vision camera |
| 4 | E | Positive supply | All-round vision camera |
| 5 | - | Not occupied | |
| 6 | - | Not occupied |
