2011 BMW X5 MFACTORY OEM SERVICE PROCEDURE

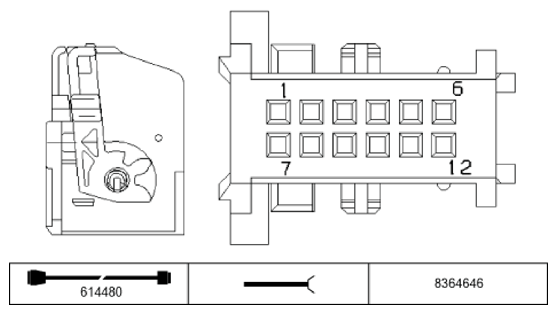

Park Distance Control (PDC) X300 Connector End View
Pin Assignments At Plug Connector X300
| Pin | Type | Description/Signal type | Connection/Measuring notes |
|---|---|---|---|
| 1 | E | Supply, terminal 15 | Fuse F114 |
| 2 | E/A | CAN bus high | CAN-bus connector |
| 3 | Not occupied | ||
| 4 | Not occupied | ||
| 5 | Not occupied | ||
| 6 | M | Ground | Ground point |
| 7 | Not occupied | ||
| 8 | E/A | CAN bus low | CAN-bus connector |
| 9 | Not occupied | ||
| 10 | Not occupied | ||
| 11 | Not occupied | ||
| 12 | Not occupied |
