2011 BMW X5 MFACTORY OEM SERVICE PROCEDURE

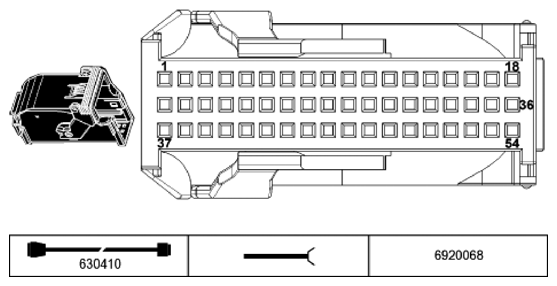

Junction Box X14272 Connector End View
PIN Assignments At Plug Connector X14272
| Pin | Type | Description/Signal type | Connection/Measuring notes |
|---|---|---|---|
| 1 | - | Not used | |
| 2 | E | Signal, fanfare horn | Steering column switch cluster |
| 3 | - | Not used | |
| 4 | - | Not used | |
| 5 | - | Not used | |
| 6 | - | Not used | |
| 7 | - | Not used | |
| 8 | M | Ground Hazard warning switch | Hazard warning switch |
| 9 | - | Not used | |
| 10 | E/A | CAN bus high | Heating/air conditioning system |
| 11 | E/A | CAN bus high | CAN bus connector |
| 12 | E/A | CAN bus low | Heating/air conditioning system |
| 13 | - | Not used | |
| 14 | - | Not used | |
| 15 | - | Not used | |
| 16 | - | Not used | |
| 17 | - | Not used | |
| 18 | - | Not used | |
| 19 | - | Not used | |
| 20 | - | Not used | |
| 21 | - | Not used | |
| 22 | - | Not used | |
| 23 | - | Not used | |
| 24 | - | Not used | |
| 25 | - | Not used | |
| 26 | M | Ground | Ground point |
| 27 | - | Not used | |
| 28 | - | Not used | |
| 29 | E/A | CAN bus high | Electrochromic interior rear view mirror with high beam assistant |
| 30 | E/A | CAN bus low | CAN bus connector |
| 31 | E/A | CAN bus low | Electrochromic interior rear view mirror with high beam assistant |
| 32 | - | Not used | |
| 33 | - | Not used | |
| 34 | - | Not used | |
| 35 | - | Not used | |
| 36 | - | Not used | |
| 37 | - | Not used | |
| 38 | - | Not used | |
| 39 | - | Not used | |
| 40 | - | Not used | |
| 41 | - | Not used | |
| 42 | - | Not used | |
| 43 | - | Not used | |
| 44 | - | Not used | |
| 45 | - | Not used | |
| 46 | - | Not used | |
| 47 | E/A | right-hand drive CAN bus high | Crash safety module |
| 47 | E/A | left-hand drive CAN bus high | Function control centre, roof |
| 48 | E/A | right-hand drive CAN bus low | Crash safety module |
| 48 | E/A | left-hand drive CAN bus low | Function control centre, roof |
| 49 | - | Not used | |
| 50 | A | Wake-up signal, terminal 15 | Steering column switch cluster |
| 51 | - | Not used | |
| 52 | - | Not used | |
| 53 | - | Not used | |
| 54 | - | Not used |
