84 10 050 Removing and installing (replacing) USB hub
Necessary preliminary tasks
- Remove GEAR SELECTOR SWITCH CARRIER

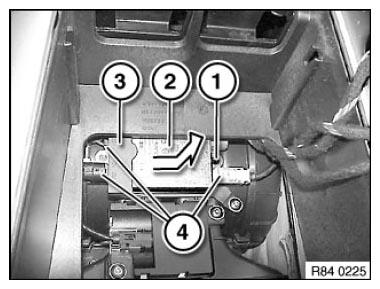

Unlock catch (1) and guide USB hub (2) in direction of arrow out of holder (3).
Disconnect plug connection (4).
Installation:
Make sure USB hub (2) is correctly seated in holder (3).
Make sure wiring harness is correctly laid.
