41 00... Frame Reference Body Dimension
Dimensions in mm.
Dimension tolerances:
- ≤ 1000 mm ± 1.5 mm
- ≥ 1000 mm ± 2.5 mm
The checkpoints shown serve to check the body and the set of attachments.
The specified dimensions always refer to the center point of the bore hole/screw.

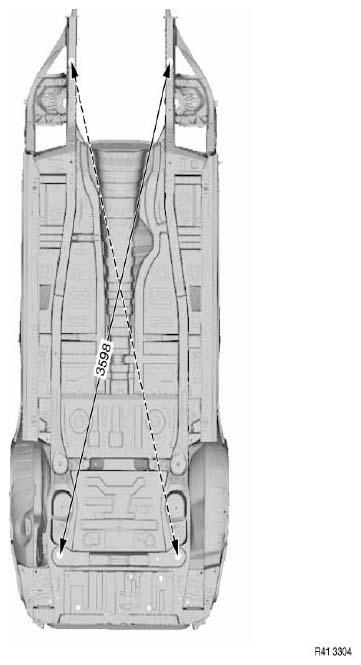

Under Body View 1

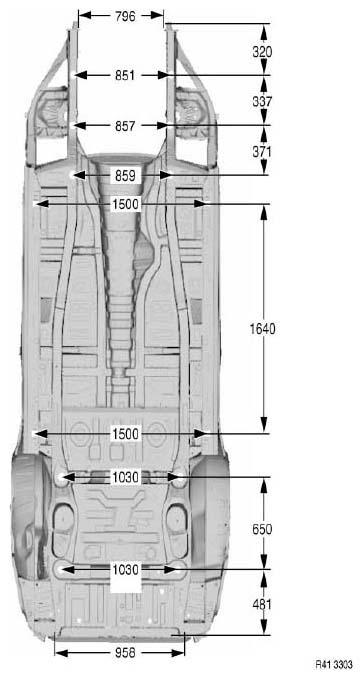

Under Body View 2
