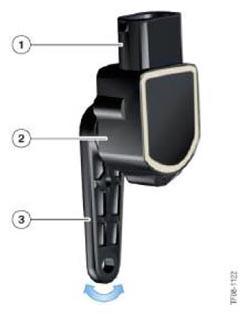

Ride-height Sensor: Notes
| Index | Explanation |
|---|---|
| 1 | Electrical connector |
| 2 | Sensor housing |
| 3 | Lever |
The angle of a pivoting lever is converted into a voltage signal by the ride height sensor. The greater the angle (relative to a defined starting or zero position), the greater is the output voltage. It is generated by a Hall-effect sensor element.
