2011 BMW Alpina B7LFACTORY OEM SERVICE PROCEDURE

Bus System Overview for Dynamic Driving Systems

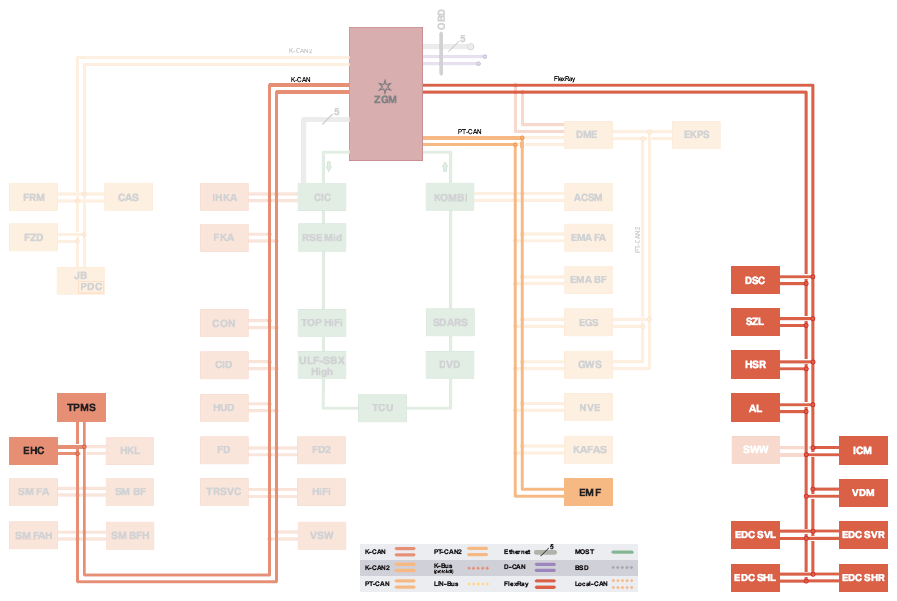

Fig 1: Bus System Overview For Dynamic Driving Systems
G06924914Courtesy of BMW OF NORTH AMERICA, INC.
INDEX DESCRIPTION CHART

Index Explanation
AL Active Steering
DSC Dynamic Stability Control
EHC Electronic ride-height control
EDC SHL Electronic Damping Control satellite, rear left
EDC SHR Electronic Damping Control satellite, rear right
EDC SVL Electronic Damping Control satellite, front left
EDC SVR Electronic Damping Control satellite, front right
EMF Electromechanical parking brake
ICM Integrated Chassis Management
HSR Rear axle slip angle control
TPMS Tire Pressure Monitoring System
SZL Steering column switch cluster with steering angle sensor
VDM Vertical Dynamics Management
ZGM Central gateway module
