Principals of Operation: Controller
The second most important hardware component of the BMW iDrive system is the controller.
The new controller has been completely redesigned compared to the CCC controller.
The most noticeable new feature of the CIC controller are the seven direct access buttons.
It is now possible to access the following menus directly:
- Main menu
- CD/Multimedia
- Radio
- Navigation
- Telephone
The following menus can still only be selected from the main menu, i.e. with no direct access:
- Contacts
- BMW Services
- Vehicle information
- Settings
The "Back" button is pressed to go back to the last display view. Up to 30 "back" steps are possible with this button.
The option button makes it possible to make fine adjustments or carry out special functions in the sub-menu last selected.
The direct access buttons replace the "long push" function. With this function is was possible to change from a sub-menu directly to another sub-menu in the CCC by pushing the controller in the corresponding direction for at least two seconds.
The respective sub-menus are now selected directly by pressing the CD/multimedia, radio, navigation or telephone buttons twice.

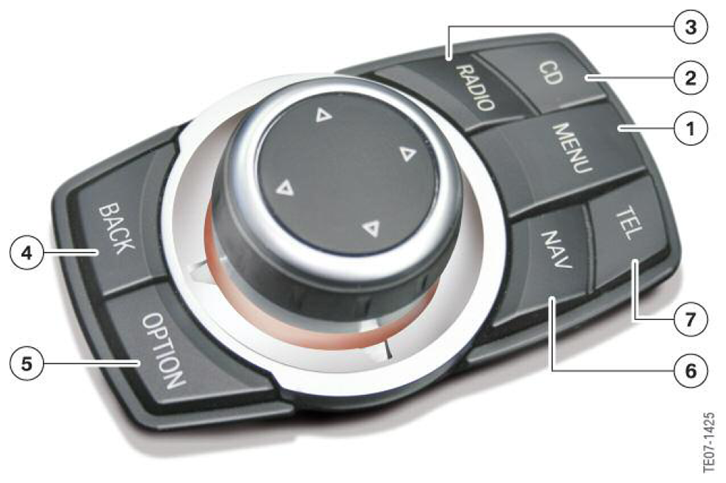

| Index | Explanation |
|---|---|
| 1 | Direct access button for Main menu |
| 2 | Direct access button for CD/Multimedia |
| 3 | Direct access button for Radio |
| 4 | Direct access button to go Back |
| 5 | Direct access button for Options sub-menu |
| 6 | Direct access button for Navigation |
| 7 | Direct access button for Telephone |
