Servotronic Components
The proportional valve for electronic volumetric flow control (EVV valve) and the Servotronic valve are directly controlled by the ICM regardless of whether the Servotronic or Integrated Active Steering is fitted.

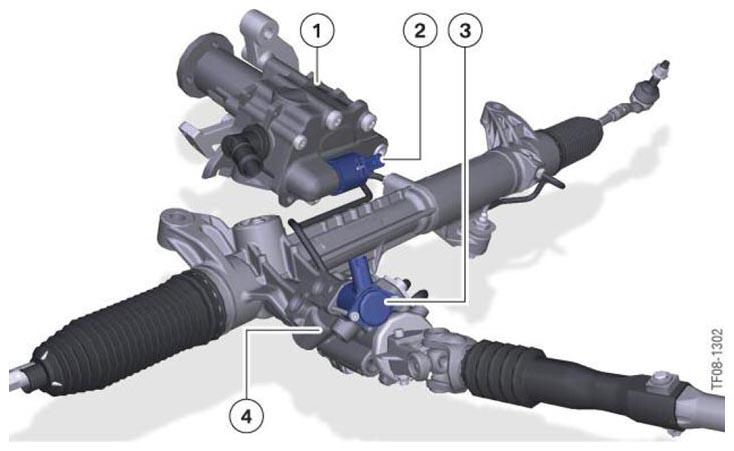

| Index | Explanation |
|---|---|
| 1 | Hydraulic pump |
| 2 | Electronic volumetric flow control valve (EVV valve) |
| 3 | Servotronic valve |
| 4 | Hydraulic power steering control valve body |

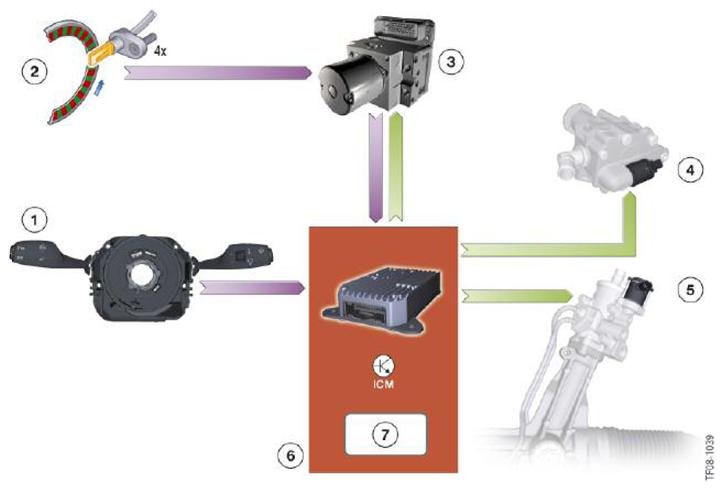

| Index | Explanation |
|---|---|
| 1 | Steering column switch cluster (SZL) |
| 2 | Wheel speed sensor |
| 3 | Dynamic stability control (DSC) |
| 4 | Electronic volumetric flow control (EVV) valve |
| 5 | Servotronic valve |
| 6 | Integrated Chassis Management (ICM) |
| 7 | "Steering control" function |
