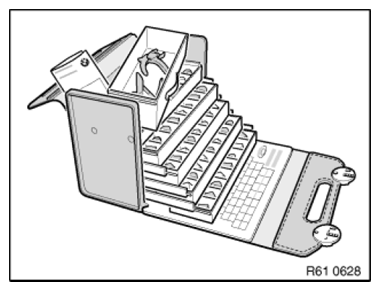

NOTE: The repair range IV for vehicle electrical system contained the required special tools and individual parts for retrofitting and repair work with the aid of fan connectors.

The case can no longer be ordered. Order individual parts for wiring harness repair through BMW Parts Service.

Fig 1: Identifying Special Tools For Vehicle Electrical System Repairing

Courtesy of BMW OF NORTH AMERICA, INC.

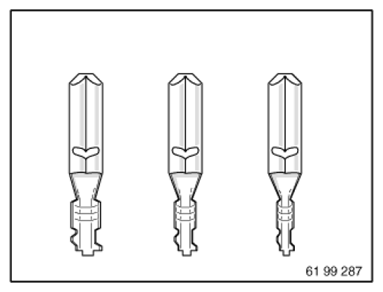

Choose contact sleeve (up to 4 mm² ) in accordance with wire cross-section.

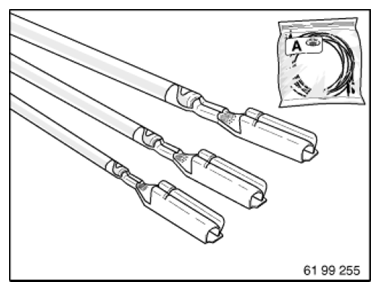

Fig 2: Identifying Contact Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.

Alternatively:

Choose contact sleeves (up to 2.5 mm² ) for fan connectors.

Fig 3: Identifying Contact Sleeves For Fan Connectors

Courtesy of BMW OF NORTH AMERICA, INC.

Cut through wire loop in wiring harness at established point.

Strip insulation from both wire ends.

See repair instructions:

CUTTING TO LENGTH AND STRIPPING INSULATION FROM CABLES

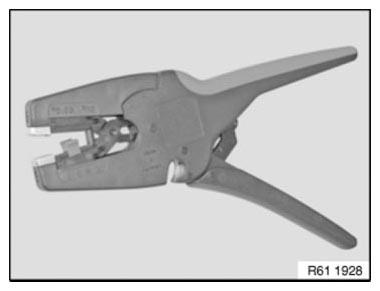

Fig 4: Identifying Plier

Courtesy of BMW OF NORTH AMERICA, INC.

Crimp contact sleeves on both wire ends.

See repair instructions:

CRIMPING ON STOP PARTS

NOTE: If using repair kit for contact sleeves, refer to repair instruction:

BUTT CONNECTOR FOR REPAIRING A PLUG CONNECTION .

Fig 5: Identifying Crimp Contact Sleeves On Wire End

Courtesy of BMW OF NORTH AMERICA, INC.

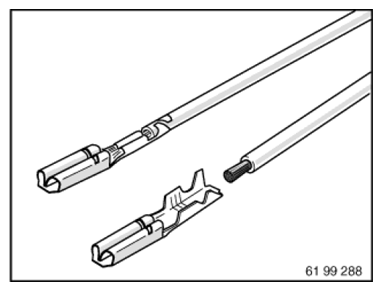

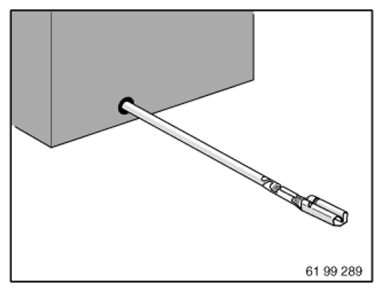

Crimp connecting cable for retrofitting likewise with contact sleeve.

Fig 6: Identifying Crimp Connecting Cable For Retrofitting

Courtesy of BMW OF NORTH AMERICA, INC.

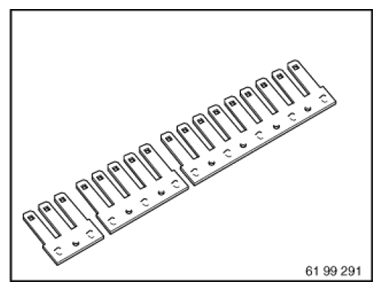

Cut required number of poles to length for fan connectors.

Fig 7: Identifying Poles

Courtesy of BMW OF NORTH AMERICA, INC.

Special tool 61 9 041 (hand crimping tool) in conjunction with 61 9 042 (matrix) are used for pushing contact sleeves onto fan connectors.

See repair instructions:

SPECIAL TOOLS FOR WIRING HARNESS REPAIRS .

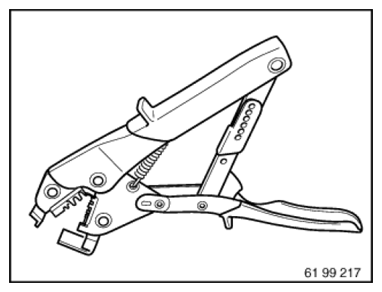

Fig 8: Identifying Special Tool 61 9 041 (Hand Crimping Tool)

Courtesy of BMW OF NORTH AMERICA, INC.

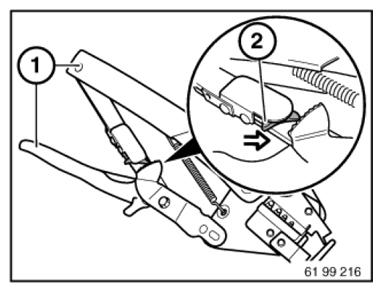

Unlock special tool 61 9 041:

Squeeze grips (1) lightly and push unlocking lever (2) in direction of arrow.

Or:

Compress handles as far as they will go, tool unlocks automatically.

Fig 9: Pushing Unlocking Lever

Courtesy of BMW OF NORTH AMERICA, INC.

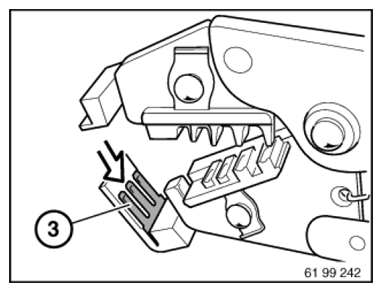

Insert prepared fan connectors (3) in special tool 61 9 041/61 9 042.

Fig 10: Inserting Fan Connectors In Special Tool (61 9 041 / 61 9 042)

Courtesy of BMW OF NORTH AMERICA, INC.

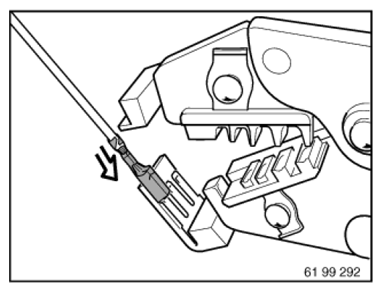

Attach wire with contact sleeve to fan connector.

Fig 11: Attaching Wire With Contact Sleeve To Fan Connector

Courtesy of BMW OF NORTH AMERICA, INC.

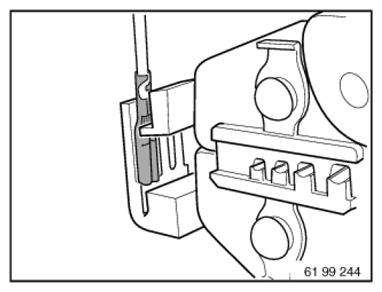

Press crimping tool together and slide contact sleeve firmly home.

Fig 12: Pressing Crimping Tool

Courtesy of BMW OF NORTH AMERICA, INC.
