Engine number at the marked surface.

Replacement drives are already assigned a number containing the identification and engine number at the factory.

The old drive number must be imprinted for replacement crankcases.

Magnesium crank cases feature a label, the engine number does not need to be embossed.

M47/M47TU/M47T2

Fig 1: Identifying Engine Identification Mark (M47/M47TU/M47T2)

Courtesy of BMW OF NORTH AMERICA, INC.

M57/M57TU/M57T2

Fig 2: Identifying Engine Identification Mark (M57/M57TU/M57T2)

Courtesy of BMW OF NORTH AMERICA, INC.

M67/M67TU

Fig 3: Identifying Engine Identification Mark (M67/M67TU)

Courtesy of BMW OF NORTH AMERICA, INC.

N47/N47S/N47C/N47T/N57/N57S/N57T

Fig 4: Identifying Engine Identification Mark (N47/N47S/N47C/N47T/N57/N57S/N57T)

Courtesy of BMW OF NORTH AMERICA, INC.

M52/M52TU

Fig 5: Identifying Engine Identification Mark (M52/M52TU)

Courtesy of BMW OF NORTH AMERICA, INC.

M54

Fig 6: Identifying Engine Identification Mark (M54)

Courtesy of BMW OF NORTH AMERICA, INC.

M56

Fig 7: Identifying Engine Identification Mark (M56)

Courtesy of BMW OF NORTH AMERICA, INC.

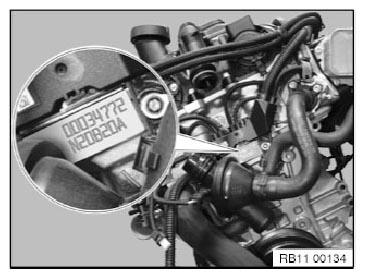

N20/N26

Fig 8: Identifying Engine Identification Mark (N20/N26)

Courtesy of BMW OF NORTH AMERICA, INC.

N40/N45/N45T/N43

Fig 9: Identifying Engine Identification Mark (N40/N45/N45T/N43)

Courtesy of BMW OF NORTH AMERICA, INC.

N42/N46/N46T

Fig 10: Identifying Engine Identification Mark (N42/N46/N46T)

Courtesy of BMW OF NORTH AMERICA, INC.

N51/N52/N52K/N52T/N53/N54/N55

Fig 11: Identifying Engine Identification Mark (N51/N52/N52K/N52T/N53/N54/N55)

Courtesy of BMW OF NORTH AMERICA, INC.

N62/N62TU

Fig 12: Identifying Engine Identification Mark (N62/N62TU)

Courtesy of BMW OF NORTH AMERICA, INC.

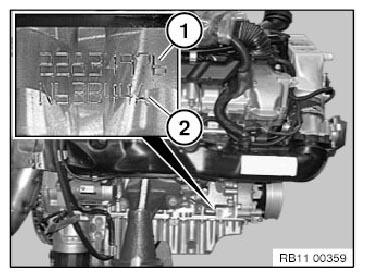

Position (1) engine number.

Position (2) engine code letters.

N63, N63TU.

S63

N74

S63T0 to engine number 2001 0052 on right side cyl. 1-4.

S63T0 from engine number 2001 0053 on left side cyl. 1 5-8.

E72 Vehicles must be imprinted on the left side cyl. 5-8.

N73

Fig 13: Identifying Engine Number And Engine Code Letters

Courtesy of BMW OF NORTH AMERICA, INC.
