2011 BMW 750Lxi 4.4 CFACTORY OEM SERVICE PROCEDURE

4120 Adapter cable

0496513 614120 Adapter cable Minimum set: Measuring and testing equipment MP

NOTE: (V adapter) Six-pin, for seat control unit diagnosis [Released]

Storage Location: E120

SI number: 02 07 08 (487)

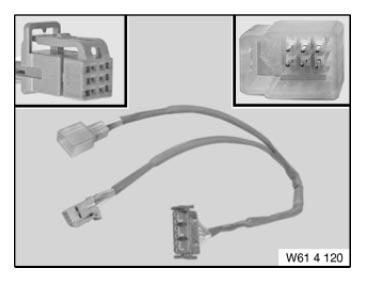

Fig 1: Identifying Adapter Cable (0496513)

Courtesy of BMW OF NORTH AMERICA, INC.
