61 13... Inline plugs, 4-, 10- pin, System Elo

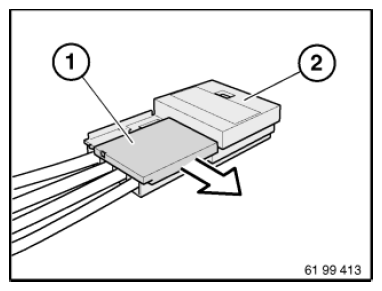

Detach fastener (1) from contact carrier (2).

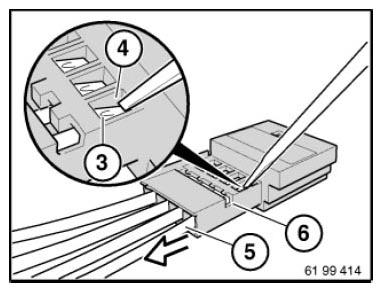

Hold down retaining hook (3) of defective contact and pull cable and contact up to secondary lock (6).

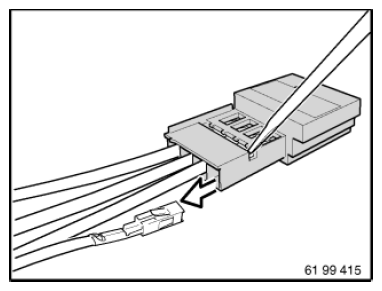

Hold down retaining hook once again in secondary lock and pull cable and contact completely out of contact carrier.
