66 53 180 Removing and installing (replacing) control unit for reversing camera
Necessary preliminary tasks:

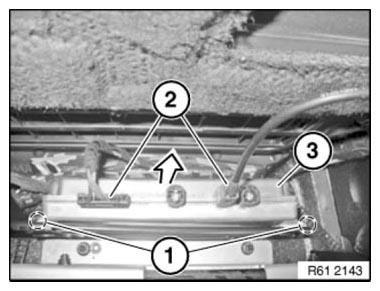

Unlock plug connections (2) and disconnect.
Unscrew nuts (1).
Remove control unit (3) in direction of arrow.
Replacement:
- Carry out PROGRAMMING/ENCODING .
- CALIBRATE REVERSING CAMERA
