61 35 115 Removing and installing/replacing footwell module
Necessary preliminary tasks:
- Disconnect BATTERY NEGATIVE CABLE
- Detach both battery cables for negative terminal in F03
- Remove FOOTWELL SIDE TRIM PANEL ON A-PILLAR, LEFT

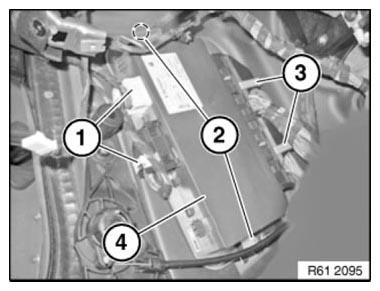

Disconnect connector connections (1) and (3).
Release nuts (2) and remove footwell module (4).
Tightening torque 61 35 4AZ .
Replacement:
Carry out VEHICLE PROGRAMMING/CODING .
