61 35 015 Removing and installing (replacing) control unit for Car Access System: Notes
Necessary preliminary tasks:
- Disconnect NEGATIVE BATTERY CABLE
- Remove both battery earth leads at F03
- Remove trim panel for pedal mechanism. See TRIM PANEL (US ONLY) or TRIM PANEL (ECE ONLY) .

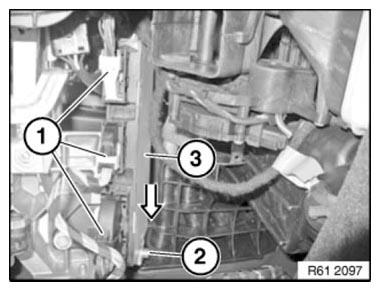

Disconnect plug connection (1).
Release screw (2).
Tightening torque 61 35 1 AZ .
Remove control unit for Car Access System (3) in direction of arrow.
Installation note:

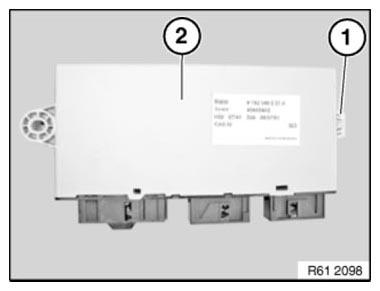

Feed guide (1) of control unit for Car Access System (2) correctly into associated mounting.
