Components Involved: Notes

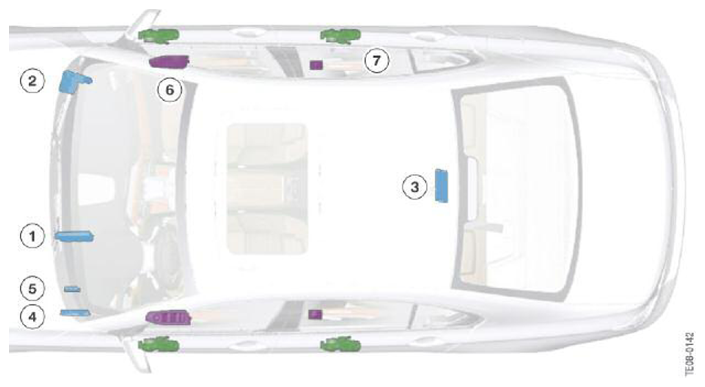

The following graphic shows all the components of the power window system together with the respective control units and control elements.
| Index | Explanation |
|---|---|
| 1 | Car Access System 4 |
| 2 | Junction box electronics |
| 3 | Remote control receiver in diversity module |
| 4 | Footwell module |
| 5 | Central gateway module |
| 6 | Power window switch |
| 7 | Power window motors |
The following components are described:
- Controls
- Control units
- Car Access System 4
- Footwell module
- Junction box electronics
- Power window motor
