Antenna System Overview: Notes
Depending on the optional equipment, F01/F02 vehicles are equipped with different antennal systems:
- FM/AM radio with IBOC system (rear window antennas)
- Roof antenna for SDARS satellite radio
- Navigation system (roof antenna)
- Remote control services (rear window antenna)
- Telephone (roof antenna)
The vehicles are also equipped with the following telephone system antenna:
- Bluetooth antenna in area of sunroof; for connecting a mobile phone with Bluetooth capabilities.
- Emergency call GSM antenna (with telematics control unit (TCU) and BMW Assist.
A description of the individual antenna and rejection filters for the antenna diversity module with antenna amplifier for outstanding radio reception.
Reference is also made to the antenna for the telephone systems, navigation and remote control services (FBD). These antenna are described in detail in the respective training material.

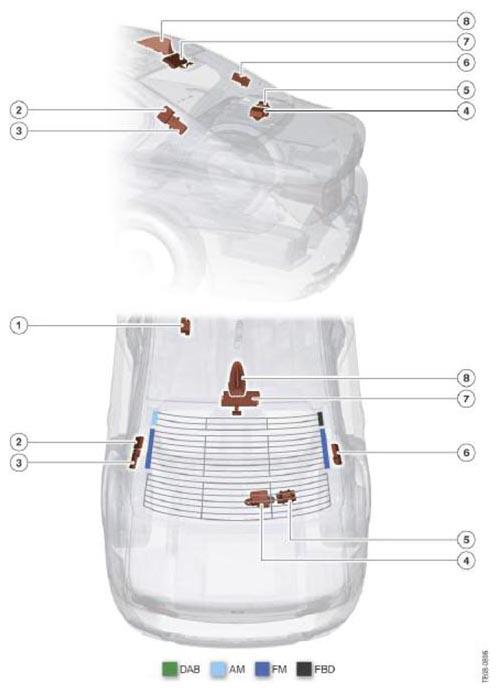

| Index | Explanation |
|---|---|
| 1 | Bluetooth antenna |
| 2 | HBL filter (HBL = additional brake light) |
| 3 | FM rejector circuit, left |
| 4 | Emergency call GSM antenna |
| 5 | AM restrictor |
| 6 | FM rejector circuit, right |
| 7 | Antenna amplifier with diversity module and remote control service (FBD) |
| 8 | Roof antenna (GPS receiver for navigation, telephone antenna, digital tuners) |
