66 31 006 Removing and installing (replacing) ACC sensor: Notes
Necessary preliminary tasks:
- Remove the ornamental GRILLE FOR THE BUMPER PANEL (CENTRE)

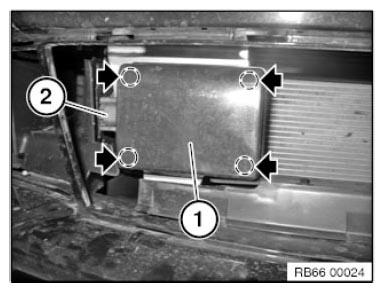

Loosen screws in marked area on the rear side of the ACC sensor (1).
Tightening torque 66 31 1AZ .
Unfasten plug connection (2) and disconnect.
Remove ACC sensor (1).
